Photo gallery
Technical data
-
Volume
46-60 m3
-
Type of equipment
on-board semi-trailer -
Fifth-wheel coupling height
1 150 mm -
Overall dimensions
- height: from 3 240 mm
- length: from 11 600 mm
- width: 2 550 mm
-

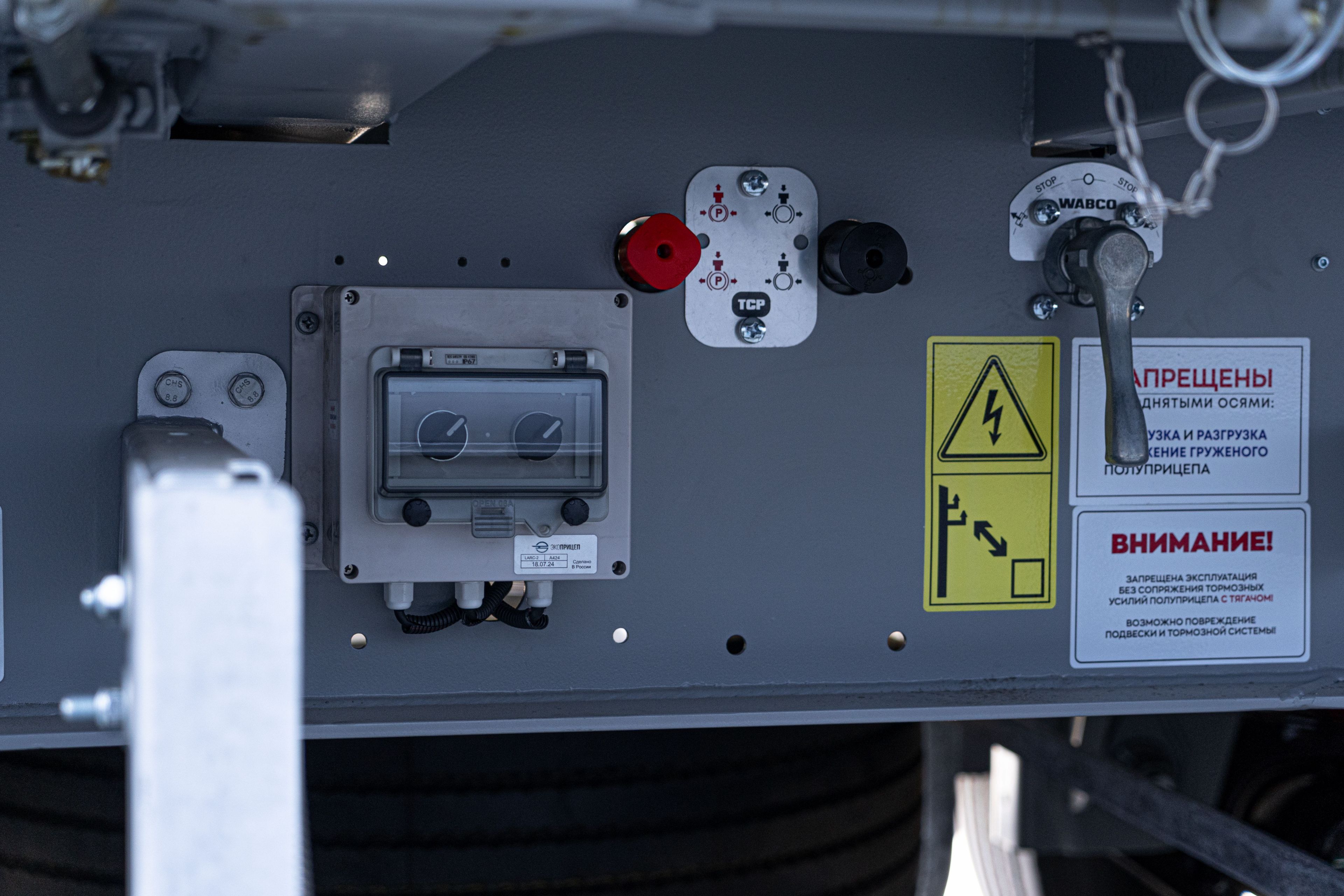

Brake system
pneumatic two-circuit. -

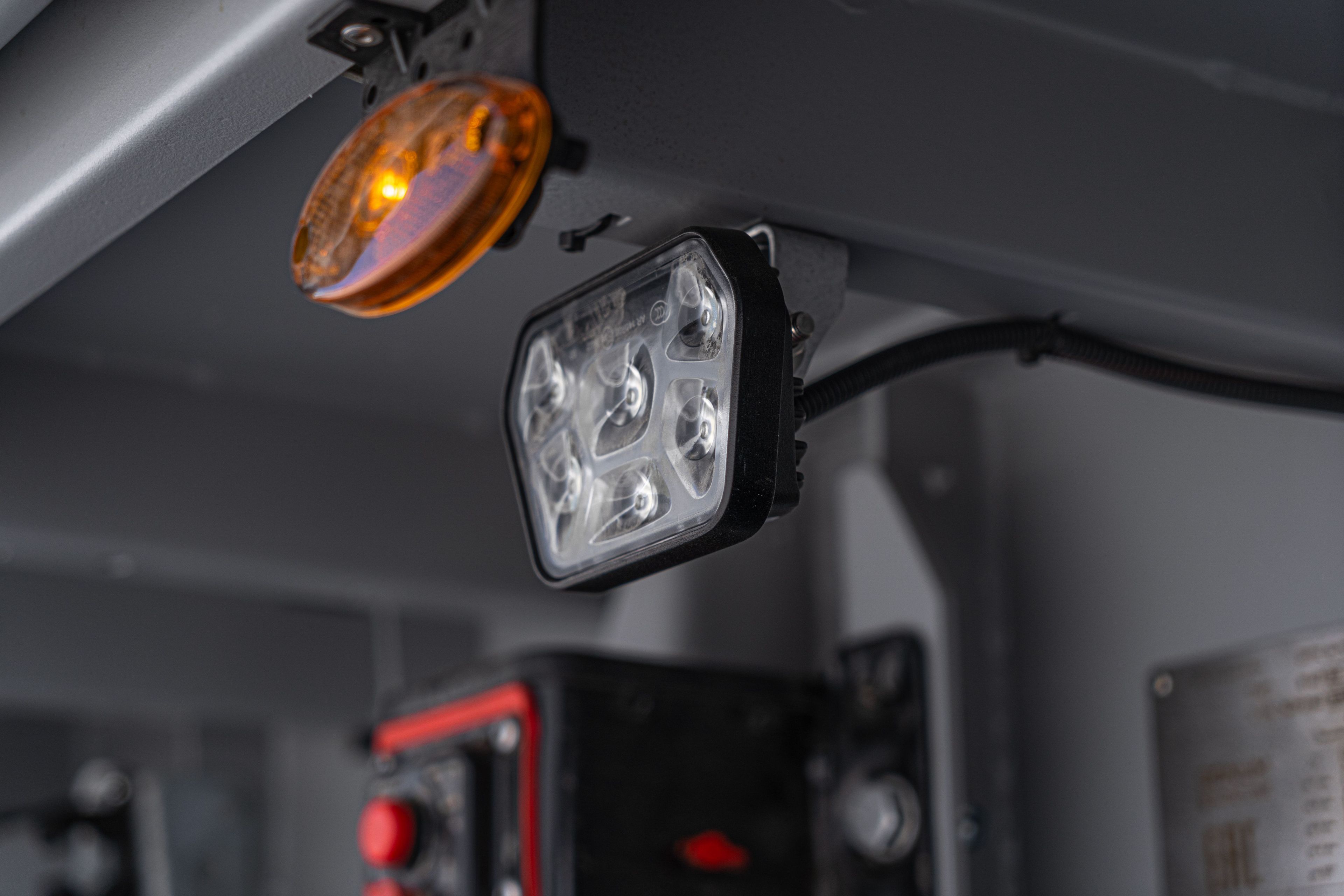

Electrical equipment
Aspoeck / Hella / Ermax or similar.
-
Body
- body with unloading on the left and right sides;
- folding side boards with an upper hitch;
- thickness of the side profile - 1.5 mm ("BONUM" side);

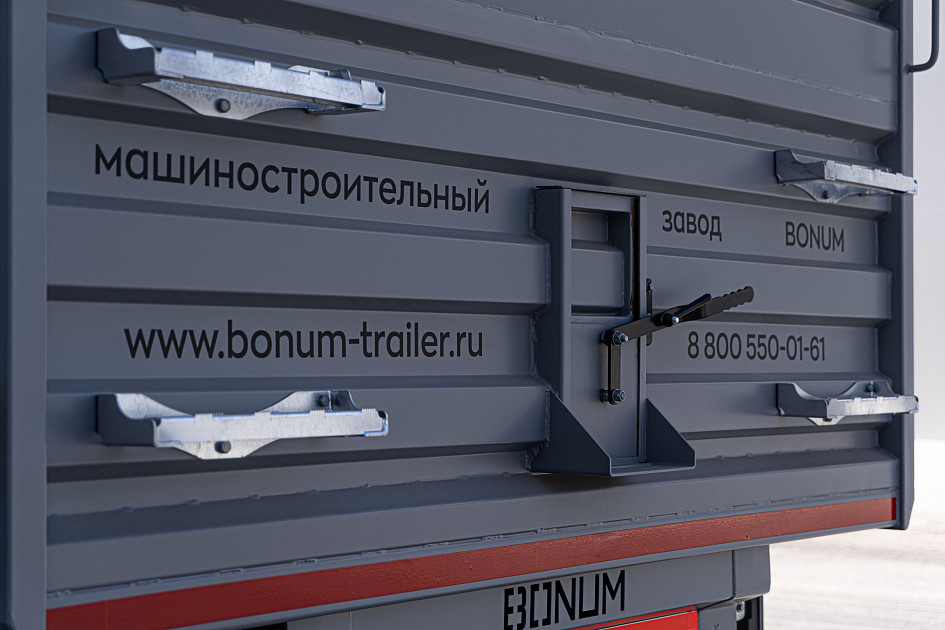

- locking fittings for Suer (Germany)/ Hildebrand (Germany) / Rapid (Germany) or similar;
- each side opens separately and is fixed in the open position;
- rubber strip in the upper part of the folding sides (to protect the hinge hinges from precipitation);

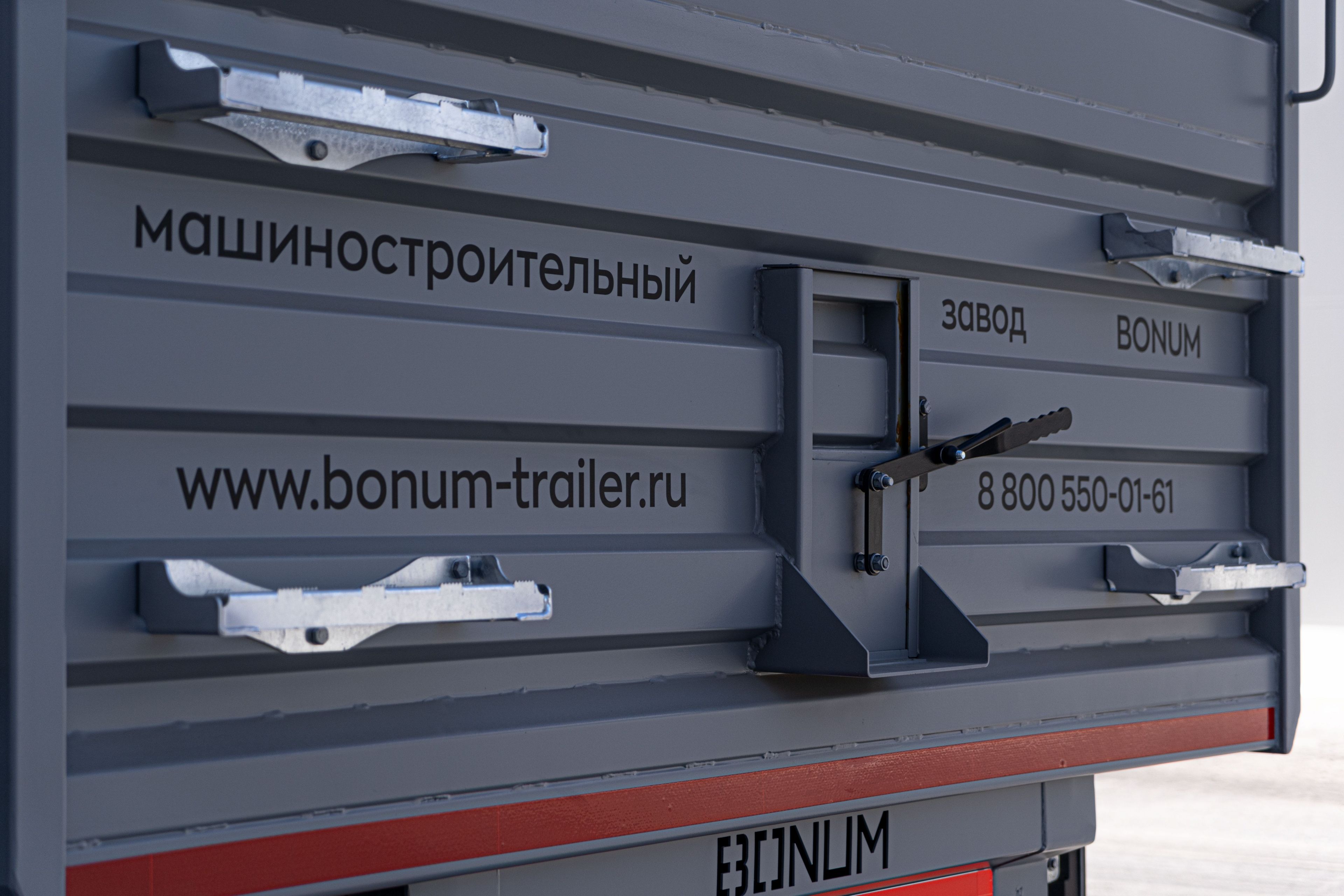

- steps on the rear wall of the body for canopy maintenance;
- steps on the front wall inside the body for access inside;
- rigid ties inside the body to preserve the geometry of the body;
- rubber seals on the inner perimeter of the sides to prevent spillage of cargo.
-

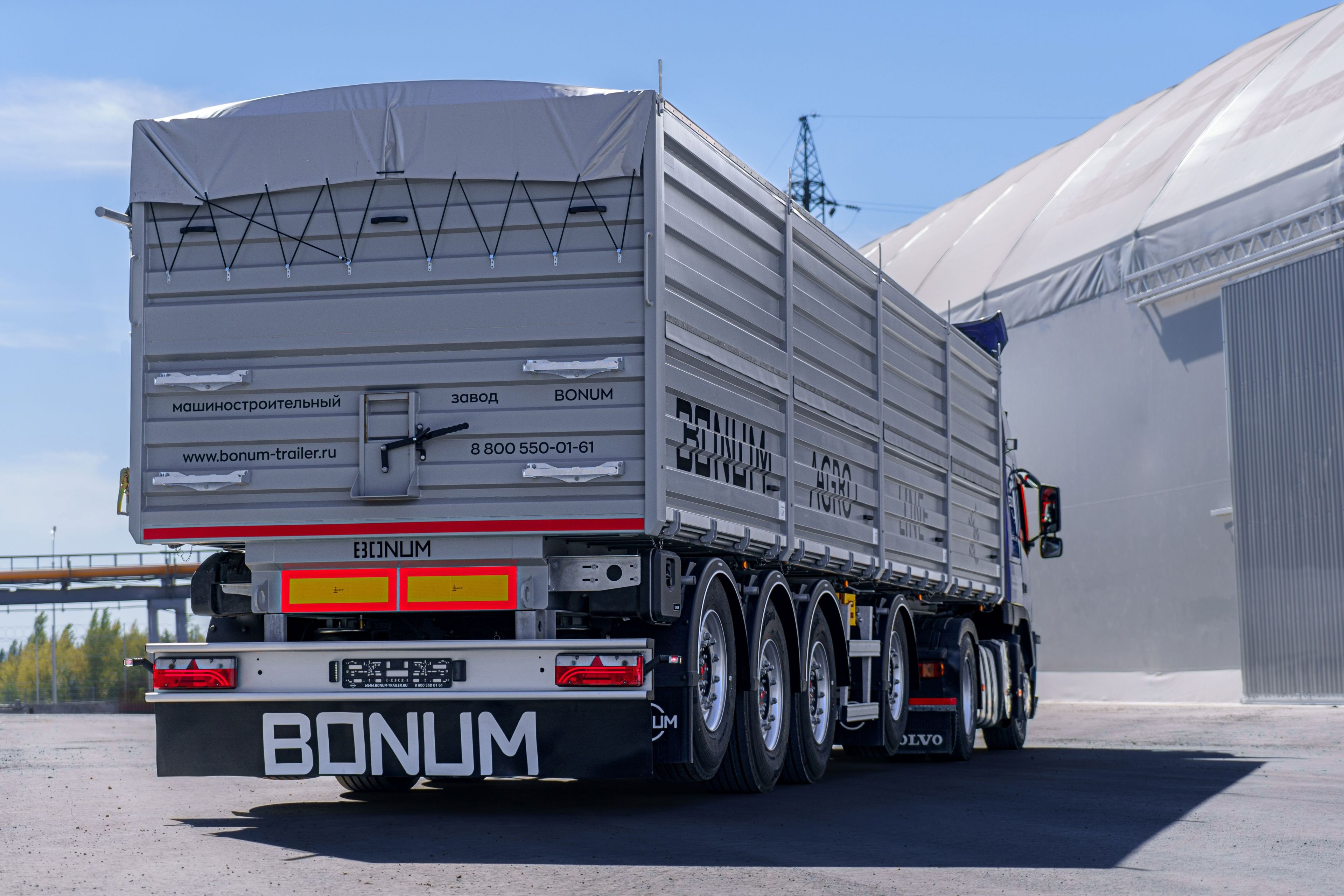

Canopy and fastening system
- PVC canopy with a density of 630-680 gr./m2 (color as agreed);
- the direction of unwinding of the awning - to the right side (to the left side is an option);
- canopy overhang on each side - 30-40 cm;
- fixing the canopy with the help of tension belts and rattles on the body racks;
- winding device of the canopy made of aluminum profile with a rotating handle;
- canopy platform in the front part of the body with a Stable flooring (Poland) or equivalent;
- arches of the canopy in the "house" form on each pair of body racks, the central longitudinal inserts-pipes between the arches – aluminum, quick-detachable.
-

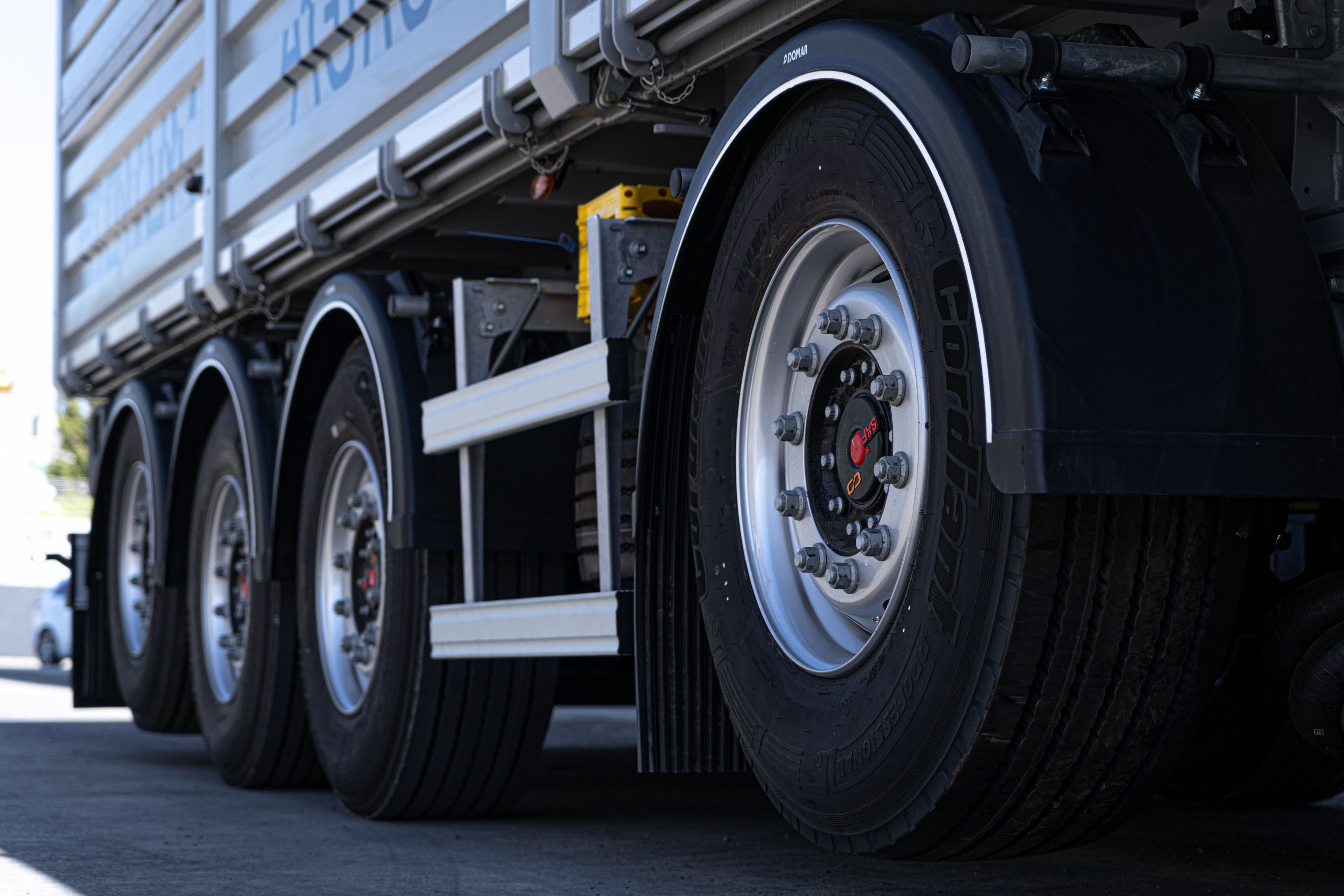

Suspension and tires
- 4 axes;
- 2 lifting axles;
- drum/disc type brake mechanisms;

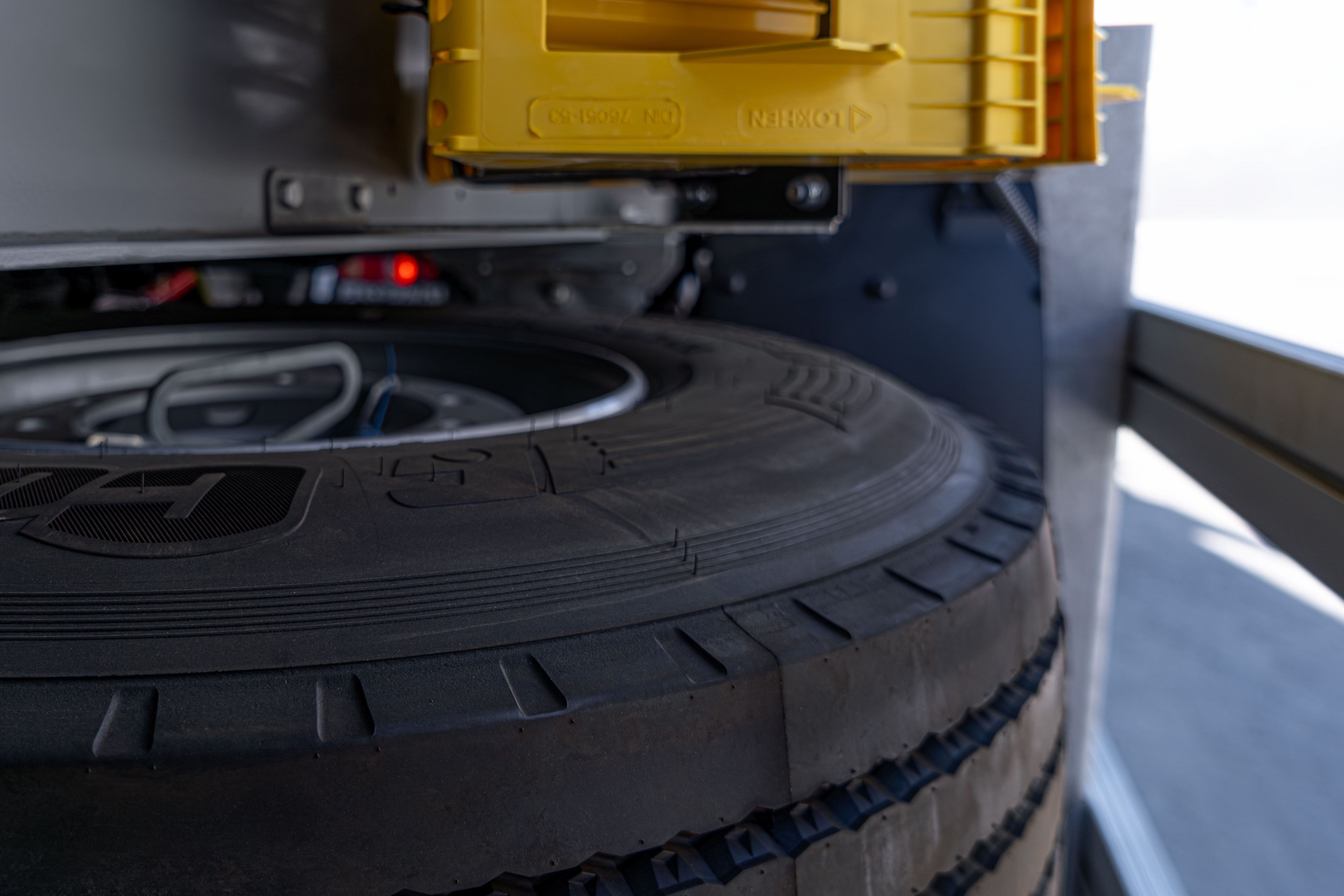

- tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8+1 pcs.
-
Painting
THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
- surface treatment in a shot blasting chamber;
- coating with a primer containing anticorrosive elements;
- painting with premium enamel.
