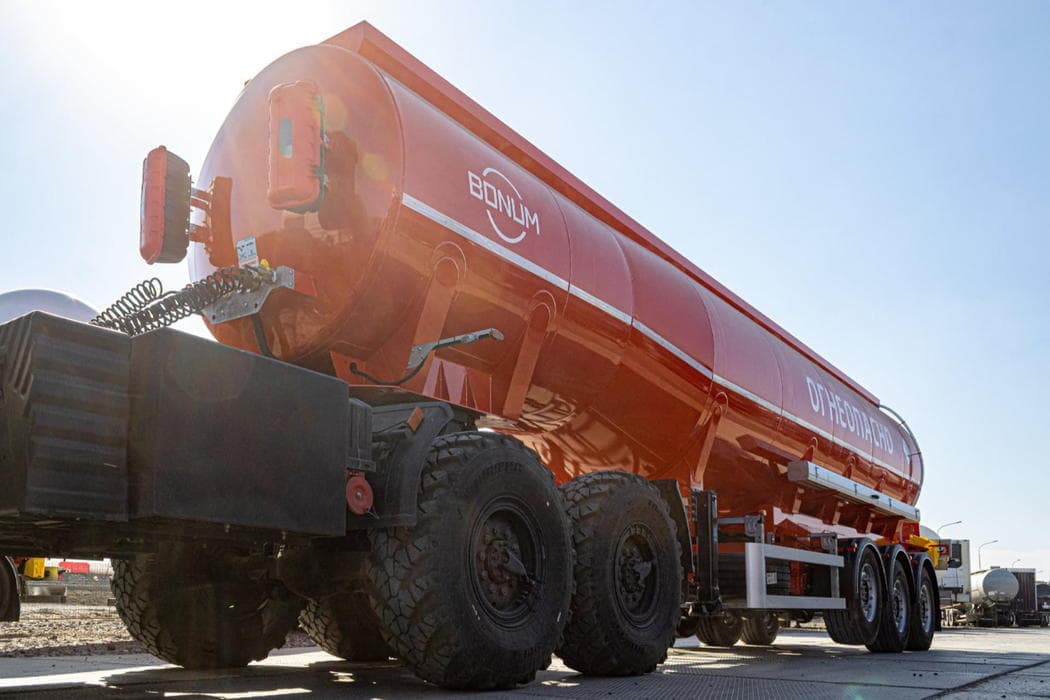

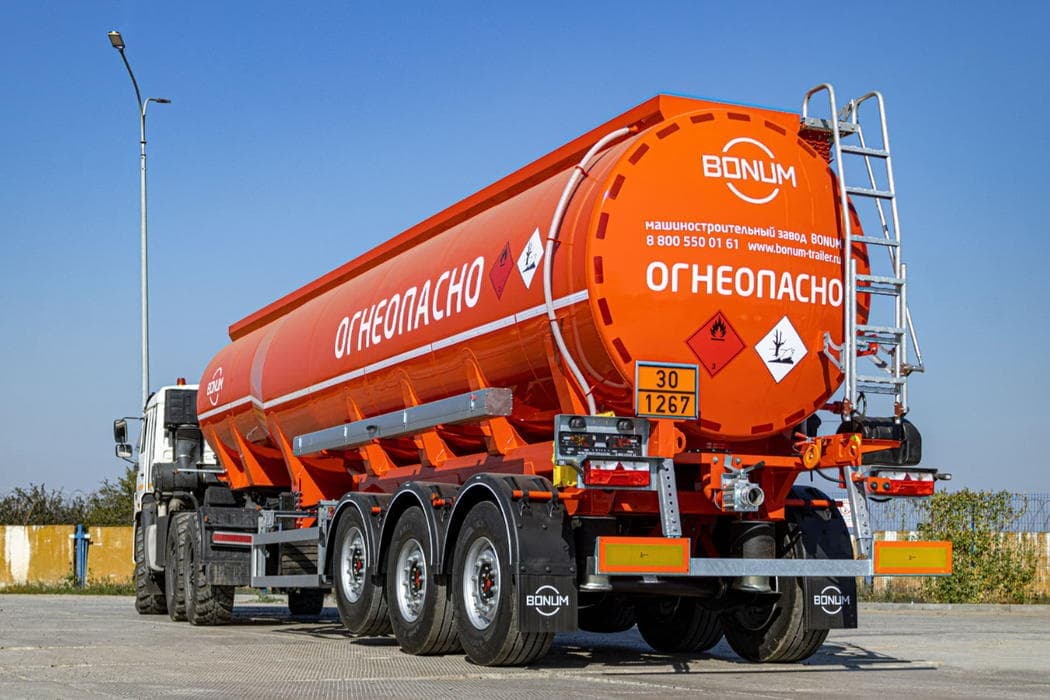

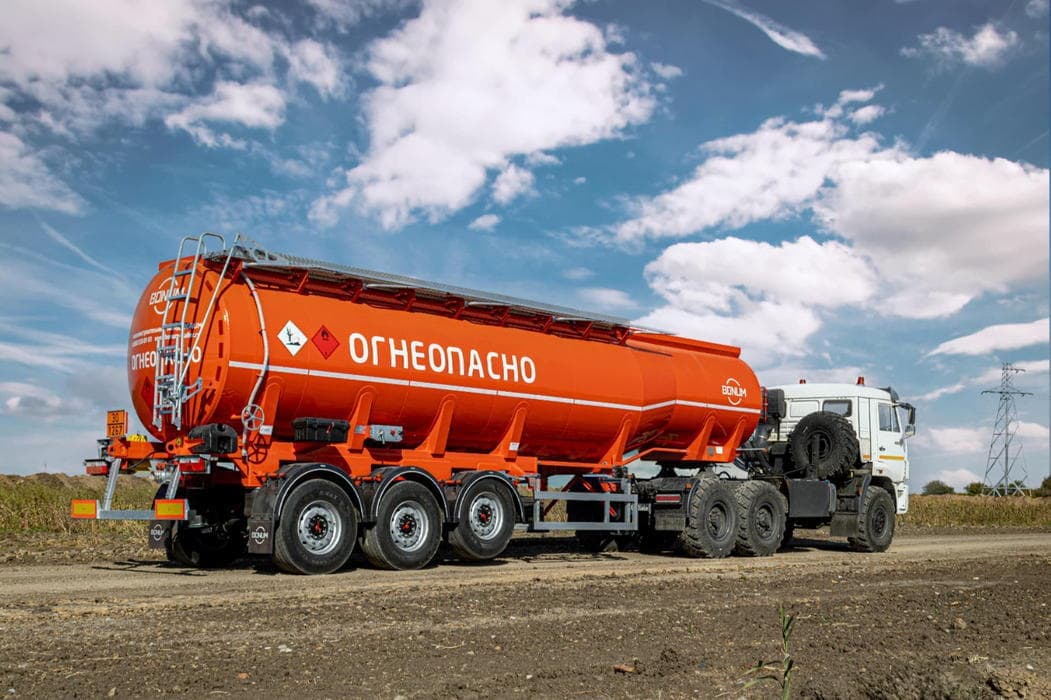

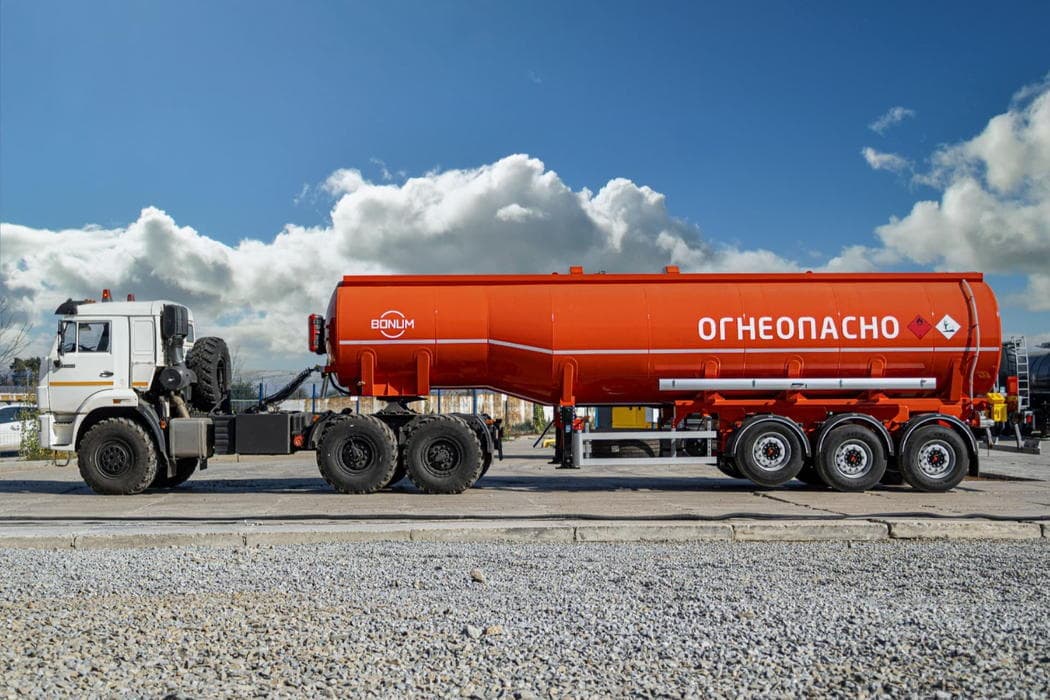

BONUM oil tanker 914220-02 (3 axles)

OIL TANKER SEMI-TRAILERS 30 м³ (914220-02)
without thermal insulation

Volume

30 m³

Coloration

«PRIME System»

Number of compartments

1 pcs

Curb weight

from 7 000 kg

Characteristics

Volume

30 м³

Type of equipment

Tank semi-trailer (oil carrier without heat insulation)

Material of the flask

Steel 09G2S, thickness 4 mm

Form type

Bottle type cylinder

Curb weight

from 7 000 kg

Dimensions

Length 11 600 mm

Width 2 500 mm

Height 3 450 mm

Number of axles

3 оси

Fifth wheel height

1 150 mm

Suspension and tyres

4 axles;
Drum / disc brakes;
Tires tubeless (at the discretion of the manufacturer) size 385/65 R22,5 with a disc – 8+1 pieces.

Painting

Surface treatment in a blastroom;
Priming with primer containing corrosion protection elements;
Painting with European premium enamels.

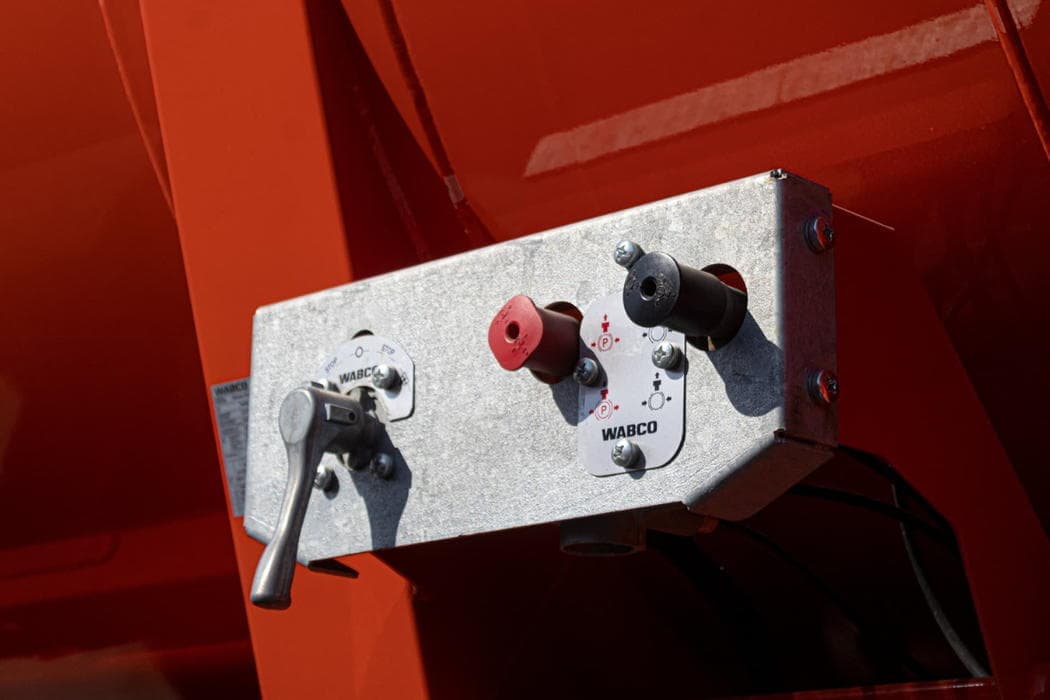

Braking system

Pneumatic dual-circuit.

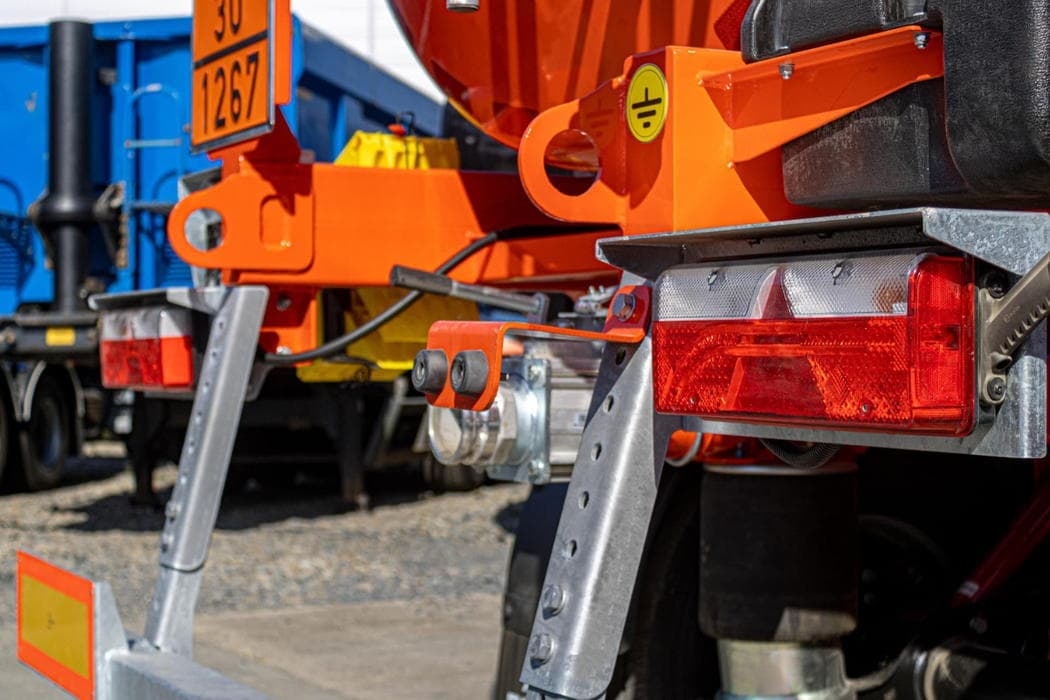

Electrical equipment

Aspoeck (Austria) / Hella (Germany) / Ermax (Germany) or equivalent

Equipped with

Composite drain hose 4.0 m Spain/Italy/ England or equivalent - 1 piece;
Camlock or similar quick release couplings on the discharge hose;

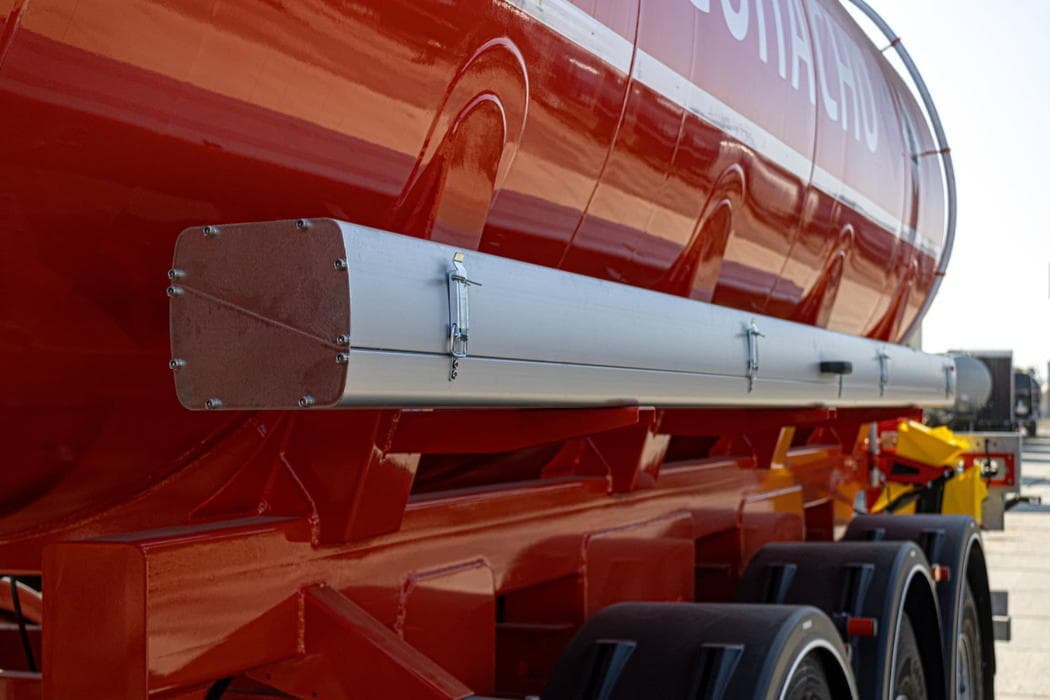

Drain hose box - 1 piece;
Sand box - 1 pc;
Fire extinguisher box– 2 pcs;
Fire extinguisher – 2 pcs;
water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
Contour reflective tape marking in premium quality;
- A cargo type indicating plate

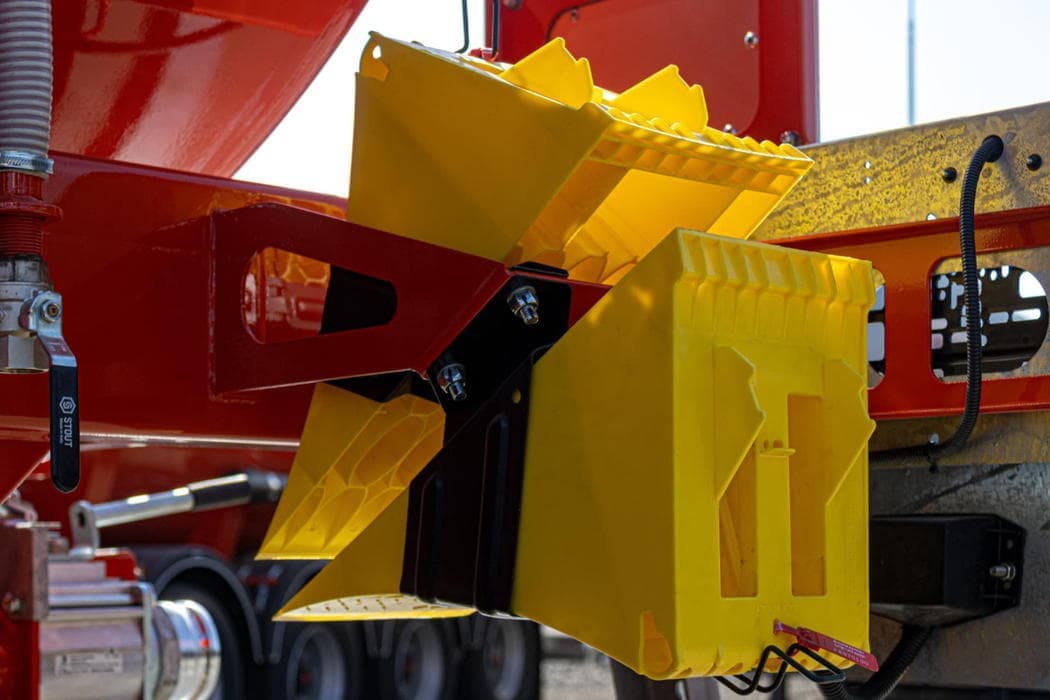

Anti-skid stops
Individual wings with brackets – 8 pcs;
Rear mudguards – 2 pcs;
Side protection – 2 pcs.

Tanker construction

2" diameter kingpin international type, with baseplate;

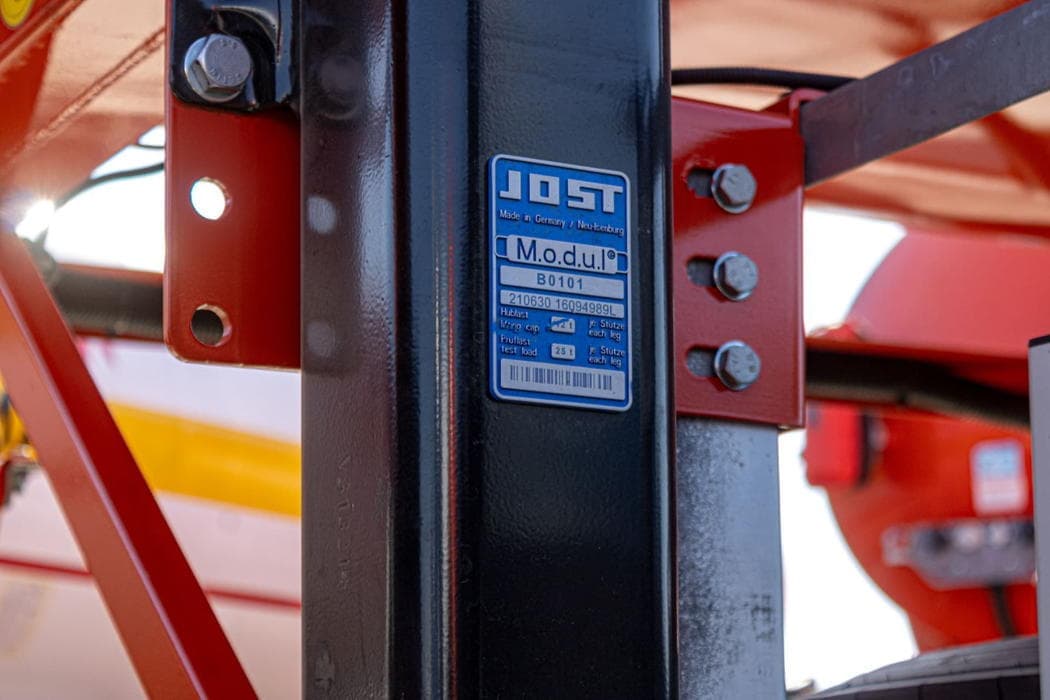

Two-speed support device with manual single-acting actuator;
Environmental box with drain on two sides;
Ball valve;
Mechanical bottom valve DKB 100 SB;
The drain is located at the rear of the tanker;

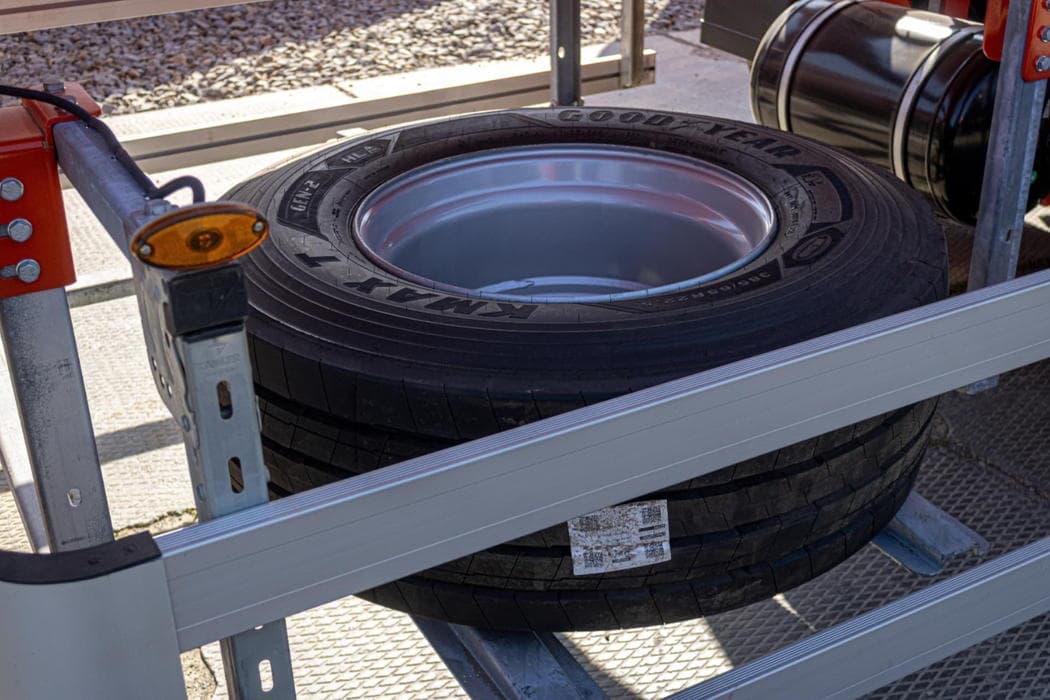

Spare wheel retention device;
Height-adjustable underride guard;
Steel galvanised walkway;

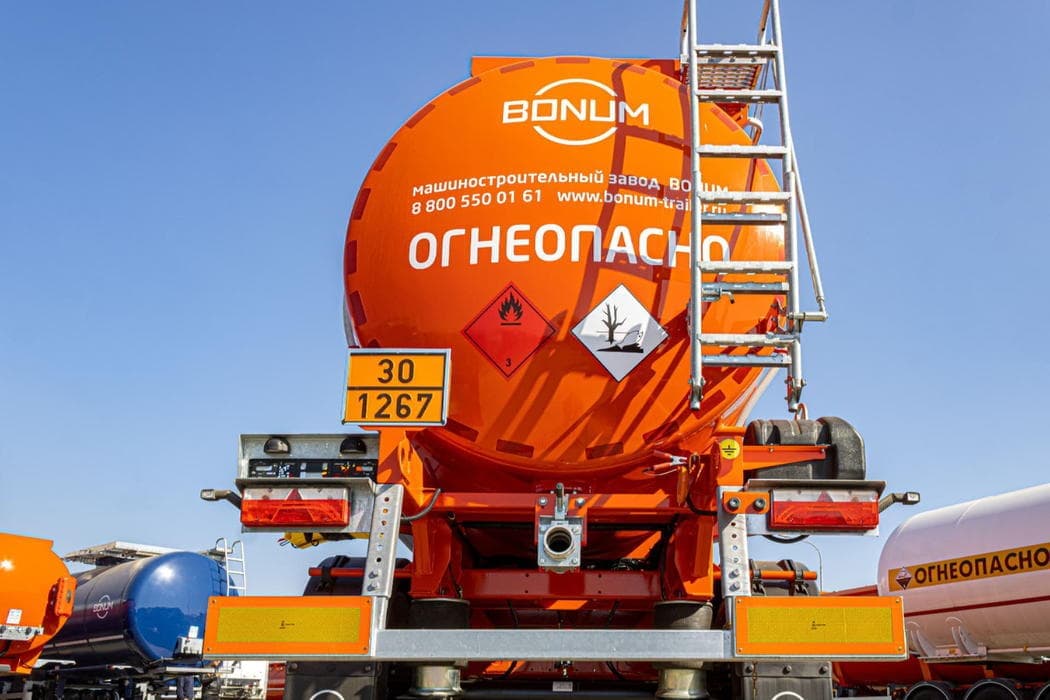

Stairs at the rear of the tank;
Rising aluminium handrail.

Characteristics

Useful volume

30 м³
Form type

Bottle type cylinder
Dimensions

Length 11 600 mm

Width 2 500 mm

Height 3 450 mm
Curb weight

from 7 000 kg
Drain control
Fillers
Bottom valve

Mechanical
Drain sleeve

Сomposite, thermal-resistant
Brake system

Pneumatic dual-circuit.
Observation deck

Steel ladder. Perforated foot Stabil path (Poland), aluminum handrails (mechanical lifting)
Equipment
- Composite drain hose 4.0 m Spain/Italy/ England or equivalent - 1 piece;
- Camlock or similar quick release couplings on the discharge hose;
- Drain hose box - 1 piece;
- Sand box - 1 pc;
- Fire extinguisher box– 2 pcs;
- Fire extinguisher – 2 pcs;
- water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
- Contour reflective tape marking in premium quality;
- - A cargo type indicating plate
- Anti-skid stops
- Individual wings with brackets – 8 pcs;
- Rear mudguards – 2 pcs;
- Side protection – 2 pcs.
The volumes are indicated in order from the SSU
Heat Insulation
Material of the flask

Steel 09G2S, thickness 4 mm
Axles
Support device
Number of axles

3 оси
Lighting and electrical engineering

Aspoeck (Austria) / Hella (Germany) / Ermax (Germany) or equivalent
Wheels
- 4 axles;
- Drum / disc brakes;
- Tires tubeless (at the discretion of the manufacturer) size 385/65 R22,5 with a disc – 8+1 pieces.
Painting System
- Surface treatment in a blastroom;
- Priming with primer containing corrosion protection elements;
- Painting with European premium enamels.

Additional options

Selected based on your wishes and the specifics of your business
