CEMENT TANKER SEMI-TRAILERS 34 м3 (914230)

  • Volume

    34 m3


  • Coloration

    «PRIME System»


  • Number of compartments

    1 pcs


  • Curb weight

    from 6 830 kg

Characteristics

Volume

34 м3

Type of equipment

CEMENT TANKER SEMI-TRAILERS

Form type

V-shaped cylinder

Dimensions

Length 10 365 mm

Width 2 550 mm

Height 4 000 mm

Curb weight

from 6 830 kg

Body material

Steel 09G2S, thickness 4 mm

Fifth wheel height

1 150 mm

Number of axles

3 оси

Suspension and tyres

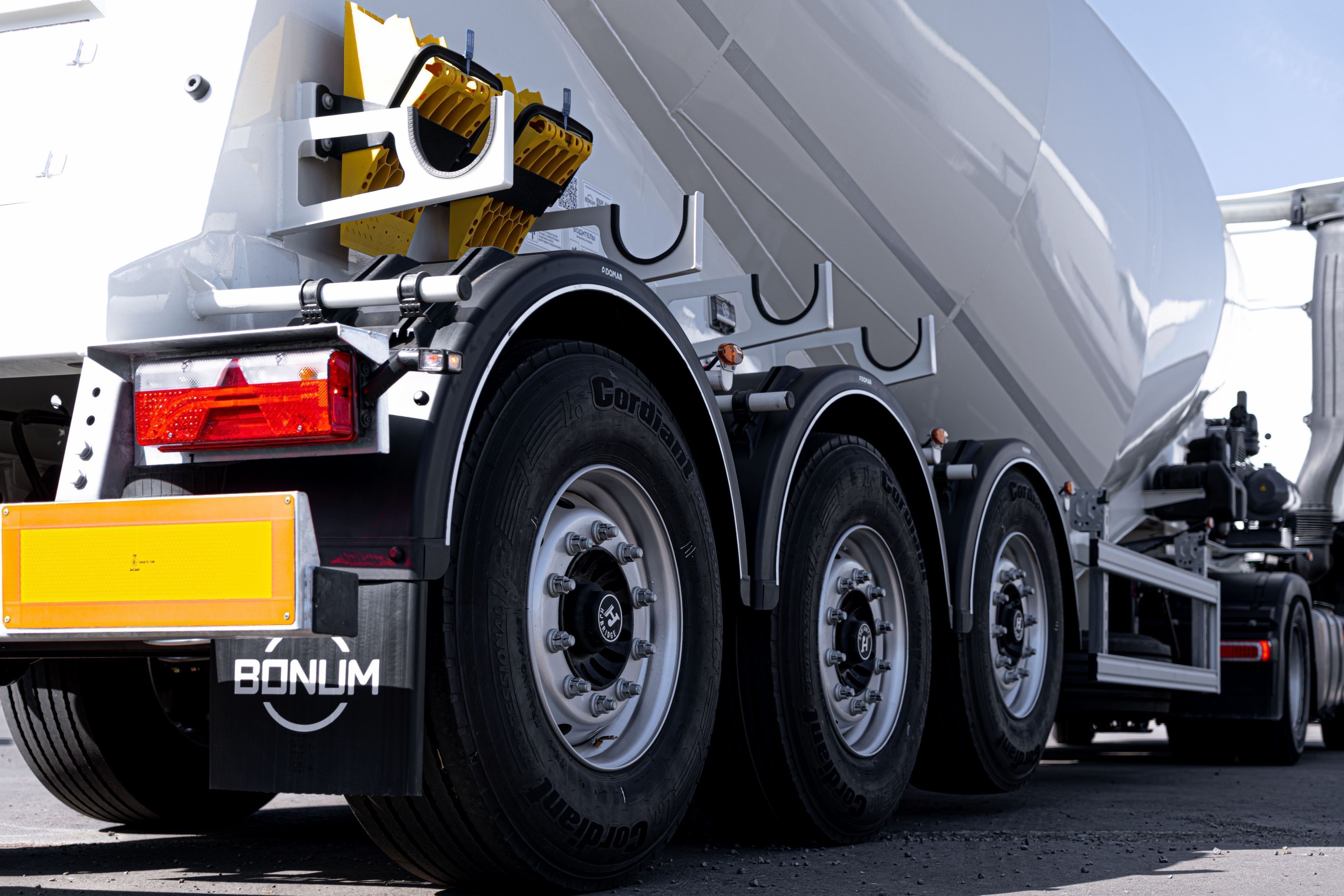

  • 3 axles SAF / JOST / BPW or analogues;
  • Drum / disc brakes;
  • Tires tubeless (at the discretion of the manufacturer) size 385/55 R22,5 with a disc – 6+1 pieces.

Painting

    THE SEMI-TRAILER IS PAINTED BY "PRIME SYSTEM" THREE-STAGE PAINT SYSTEM TECHNOLOGY:
  • Surface treatment in a blastroom;
  • Priming with primer containing corrosion protection elements;
  • Painting with European premium enamels.

Brake system

Pneumatic dual-circuit.

Electrical equipment

Aspoeck (Austria) / Hella (Germany) / Ermax (Germany) or equivalent

Tanker construction

  • 2" diameter kingpin international type, with baseplate;
  • Two-speed support device with manual single-acting actuator;
  • Stop valves Stout (Italy) or equivalent;

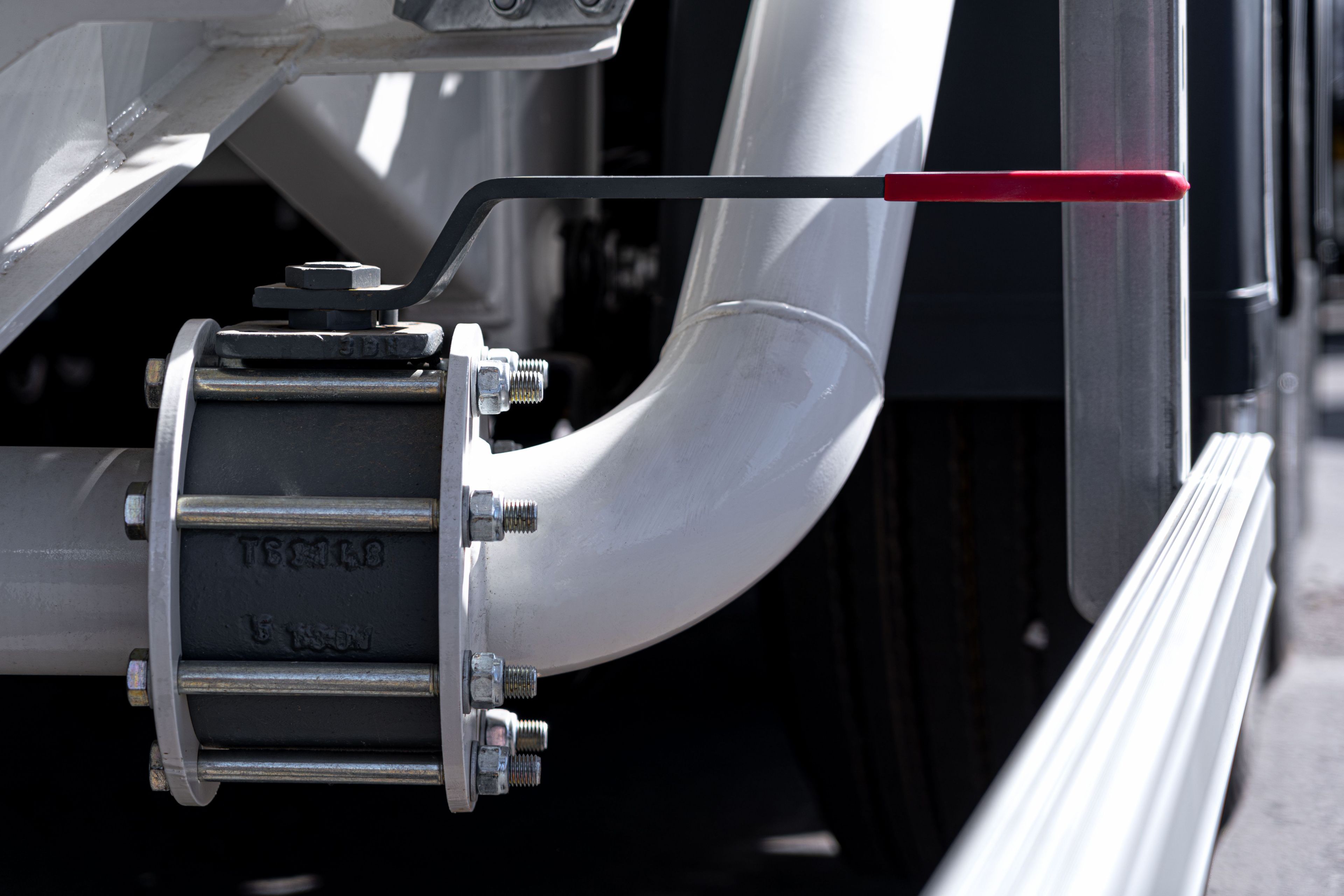

  • Valftek ball valve or equivalent;
  • Pneumatic discharge system with vibrating floor
  • Hatches for top loading through necks with quick-release catches - 2 pcs;
  • Pneumatic discharge manifold system DN 100;

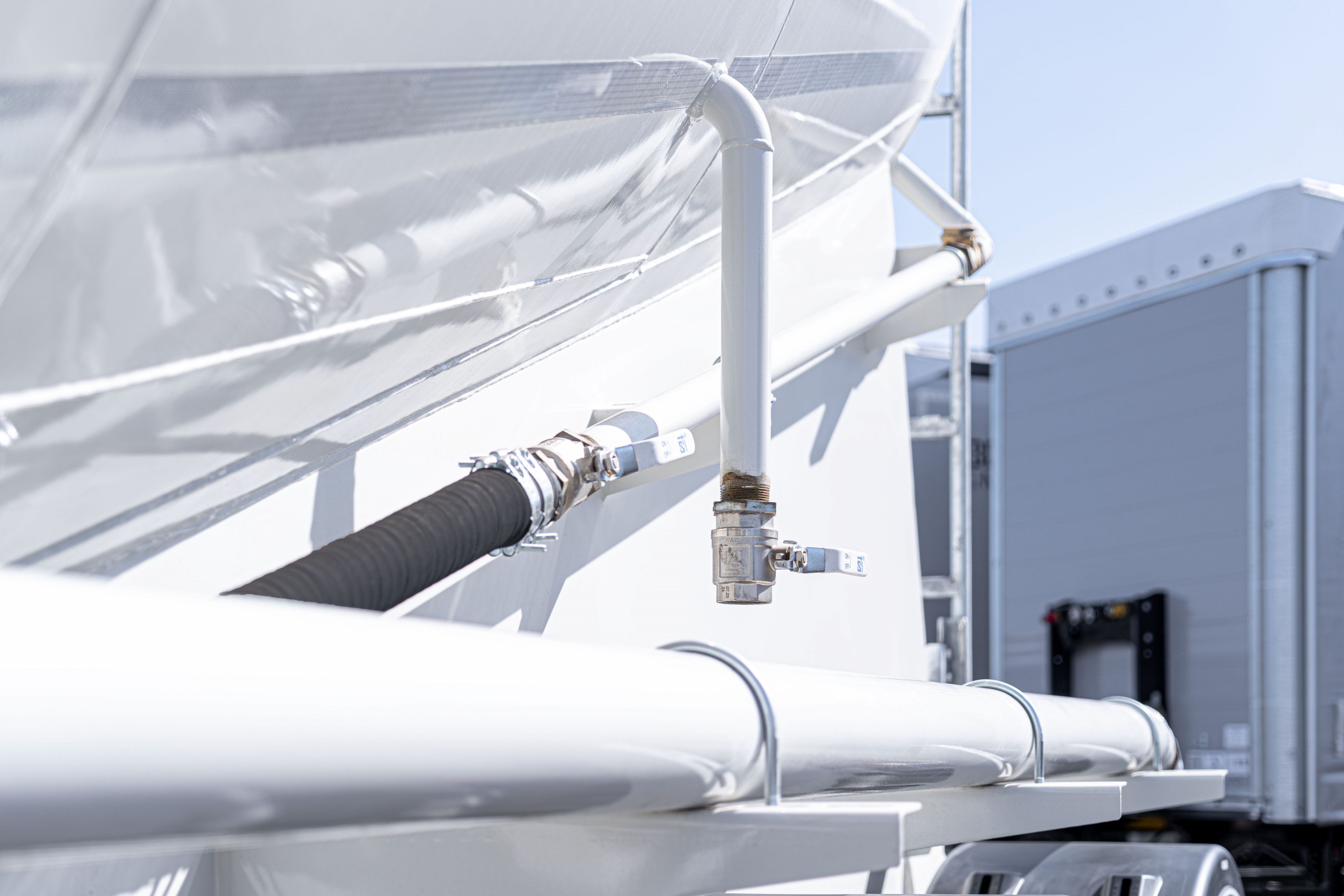

  • Air distribution and air supply lines with manual adjustment;
  • Safety back pressure valve;
  • Oil separator in the compressed air system;
  • Vibration-resistant mechanical pressure gauge for monitoring the system pressure;
  • Safety relief valve in the event of system overpressure; 2 pcs;
  • Emptying at the rear of the tank;
  • Spare wheel retention device;
  • Underride guard is height adjustable;
  • Steel galvanised walkway;
  • Stairs at the rear of the tank;
  • Rising aluminium handrail;
  • Storage compartment at the rear of the tank;
  • Galvanised hitch brackets;

Equipment

  • Camlock or similar quick release couplings on the discharge hose;
  • Abrasion-resistant unloading hose Alfagoma (Italy) or analogue 6 m - 1 pc;

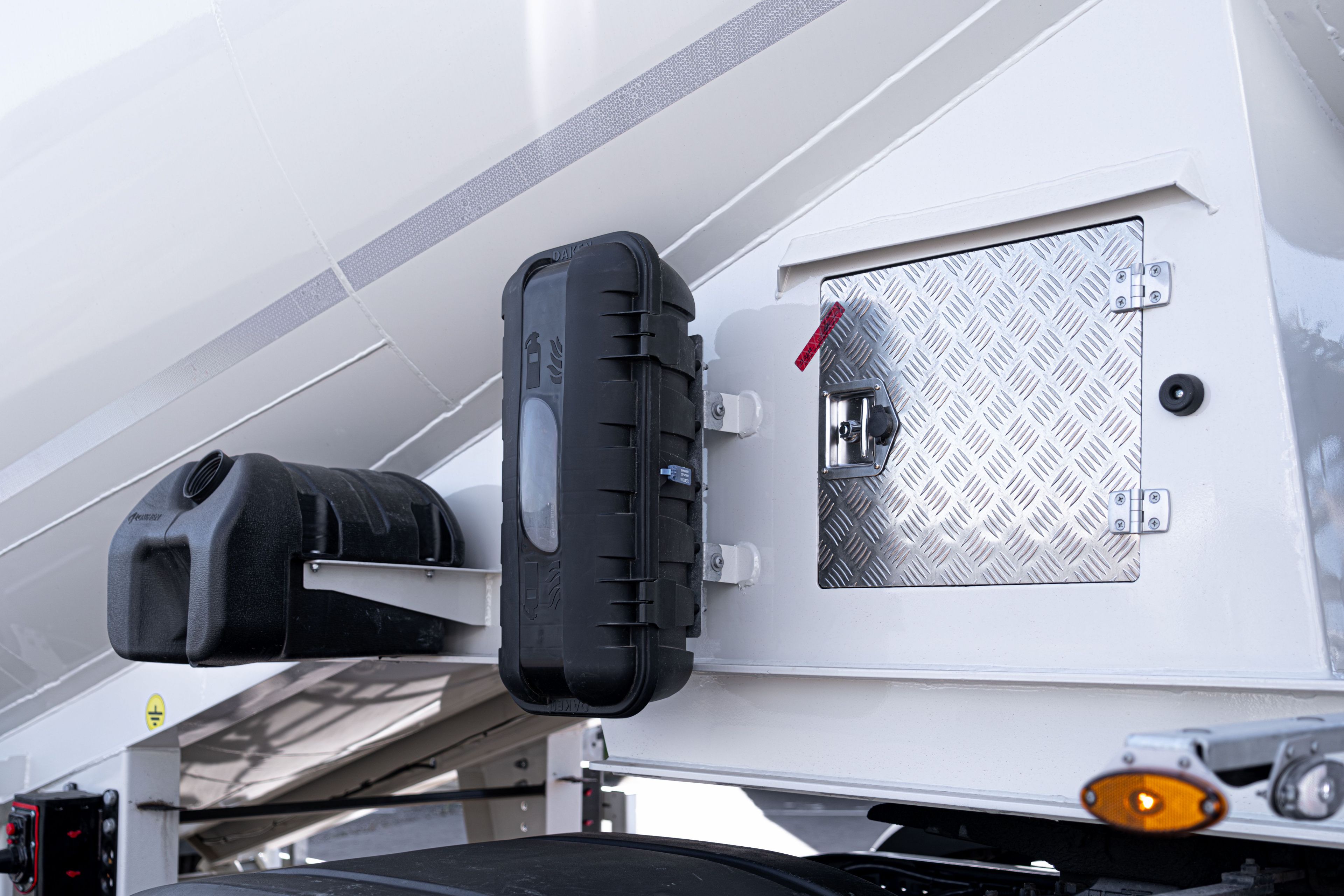

  • Fire extinguisher box Daken (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 1 pc;
  • Fire extinguisher - 1 pc;
  • Lokhen (Italy) / Parlock (Finland) / Lago (Italy) water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
  • Contour reflective tape marking in premium quality;
  • Lokhen (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs;
  • Individual wings with brackets Domar (Italy) / Parlock (Finland) / Lago (Italy) or analogue - 8 pcs;
  • Rear mudguards Domar (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs;
  • Side protection Takler (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs.

The volumes are indicated in order from the SSU

  • Volume

    34 м3

  • Form type

    V-shaped cylinder

  • Dimensions

    Dimensions 10 365 mm

    Width 2 550 mm

    Height 4 000 mm

  • Curb weight

    from 6 830 kg

  • Brake system

    Pneumatic dual-circuit.

  • Axis distance

  • Material of the flask

    Steel 09G2S, thickness 4 mm

  • Axles

    Classic

    Premium
    SAF / BPW / Osman KOC

  • Support device

    Jost (Germany)

  • Wheels

    • 3 axles SAF / JOST / BPW or analogues;
    • Drum / disc brakes;
    • Tires tubeless (at the discretion of the manufacturer) size 385/55 R22,5 with a disc – 6+1 pieces.

  • Equipment

    • Camlock or similar quick release couplings on the discharge hose;
    • Abrasion-resistant unloading hose Alfagoma (Italy) or analogue 6 m - 1 pc;
    • Fire extinguisher box Daken (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 1 pc;
    • Fire extinguisher - 1 pc;
    • Lokhen (Italy) / Parlock (Finland) / Lago (Italy) water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
    • Contour reflective tape marking in premium quality;
    • Lokhen (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs;
    • Individual wings with brackets Domar (Italy) / Parlock (Finland) / Lago (Italy) or analogue - 8 pcs;
    • Rear mudguards Domar (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs;
    • Side protection Takler (Italy) / Parlock (Finland) / Lago (Italy) or equivalent - 2 pcs.

    The volumes are indicated in order from the SSU

  • Painting System

      THE SEMI-TRAILER IS PAINTED BY "PRIME SYSTEM" THREE-STAGE PAINT SYSTEM TECHNOLOGY:
    • Surface treatment in a blastroom;
    • Priming with primer containing corrosion protection elements;
    • Painting with European premium enamels.
