Cement truck 28 m3
Cement truck 34 m3

Cement truck 31 m3 with outrigger axle

914231

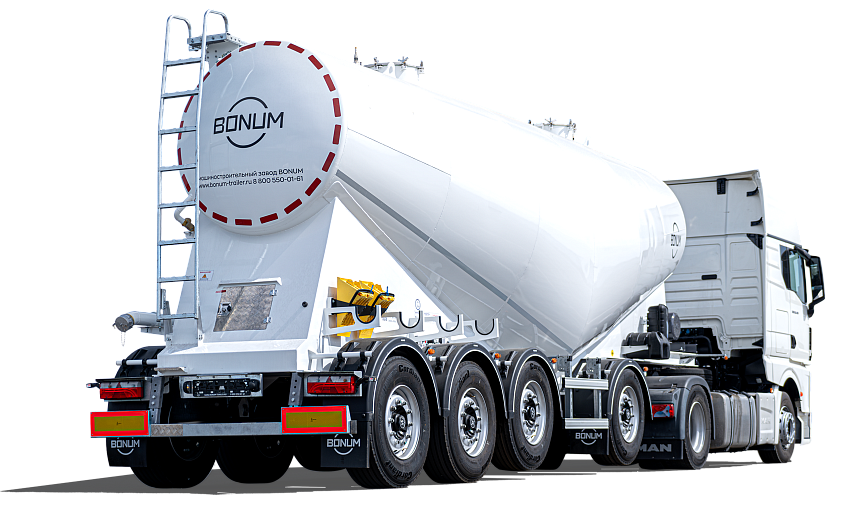

Cement truck 31 m3 with outrigger axle
price list order
  • Volume
    31 m3
  • Number of axes
    3+1 axes
  • Curb weight
    from 7,050 kg

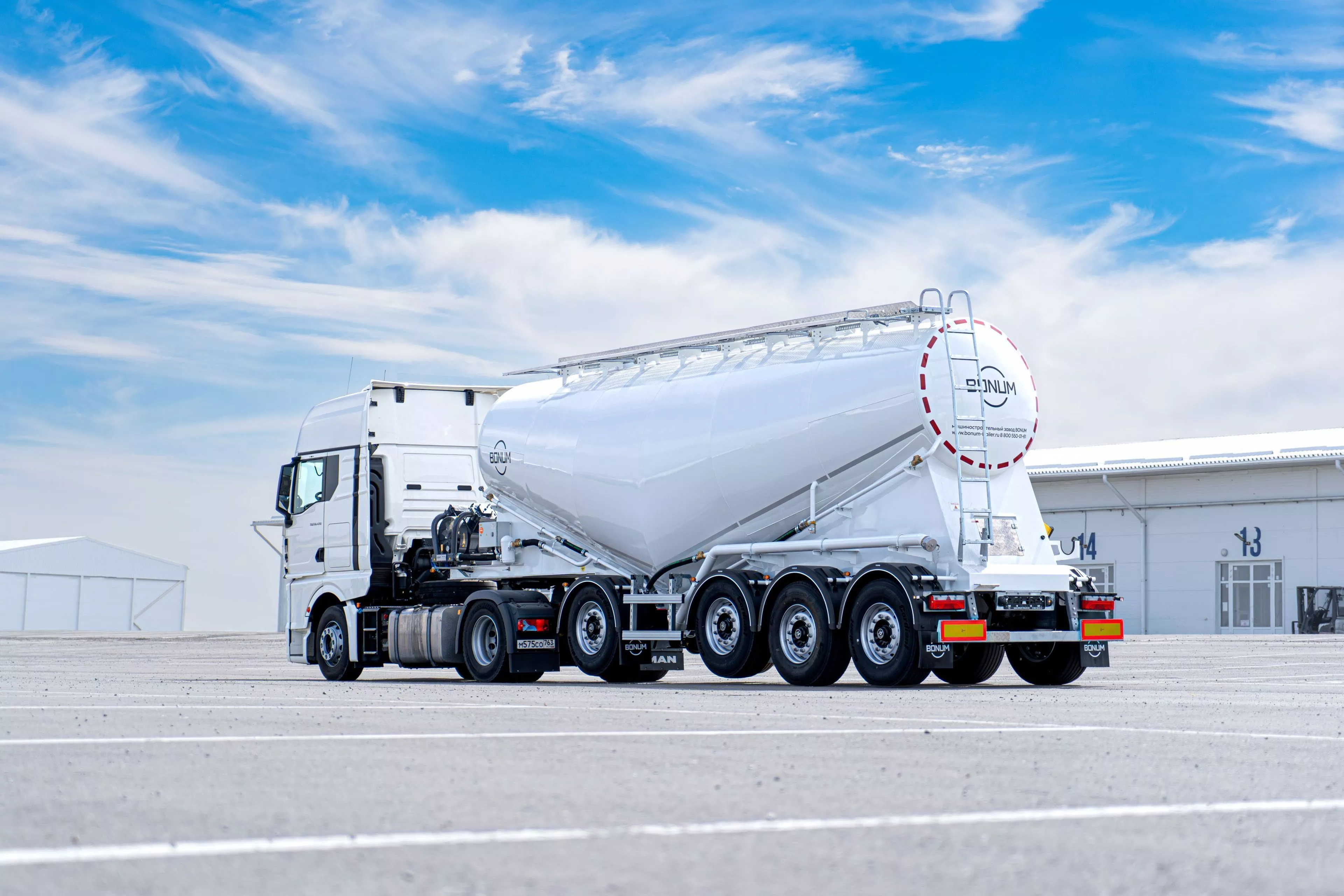

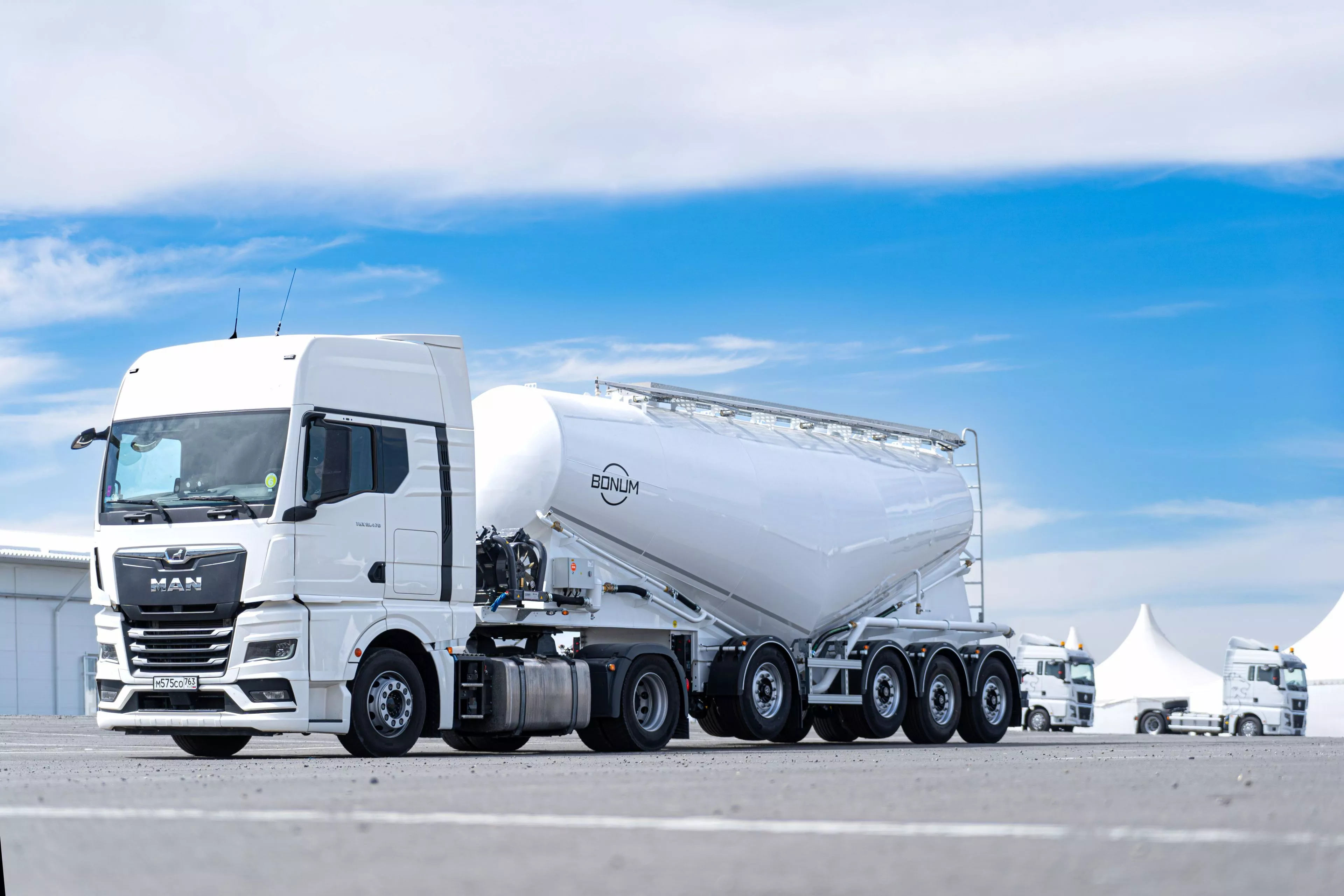

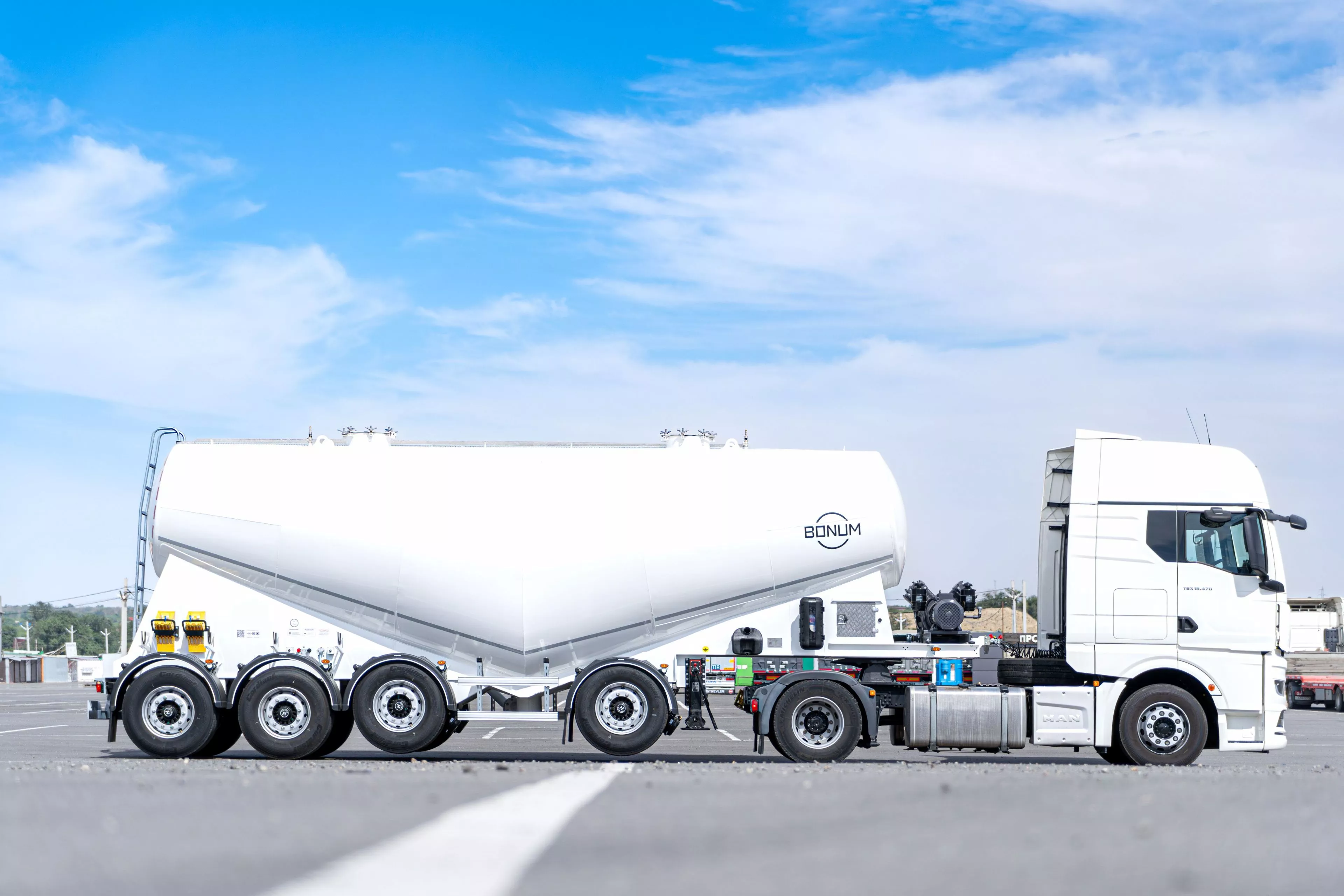

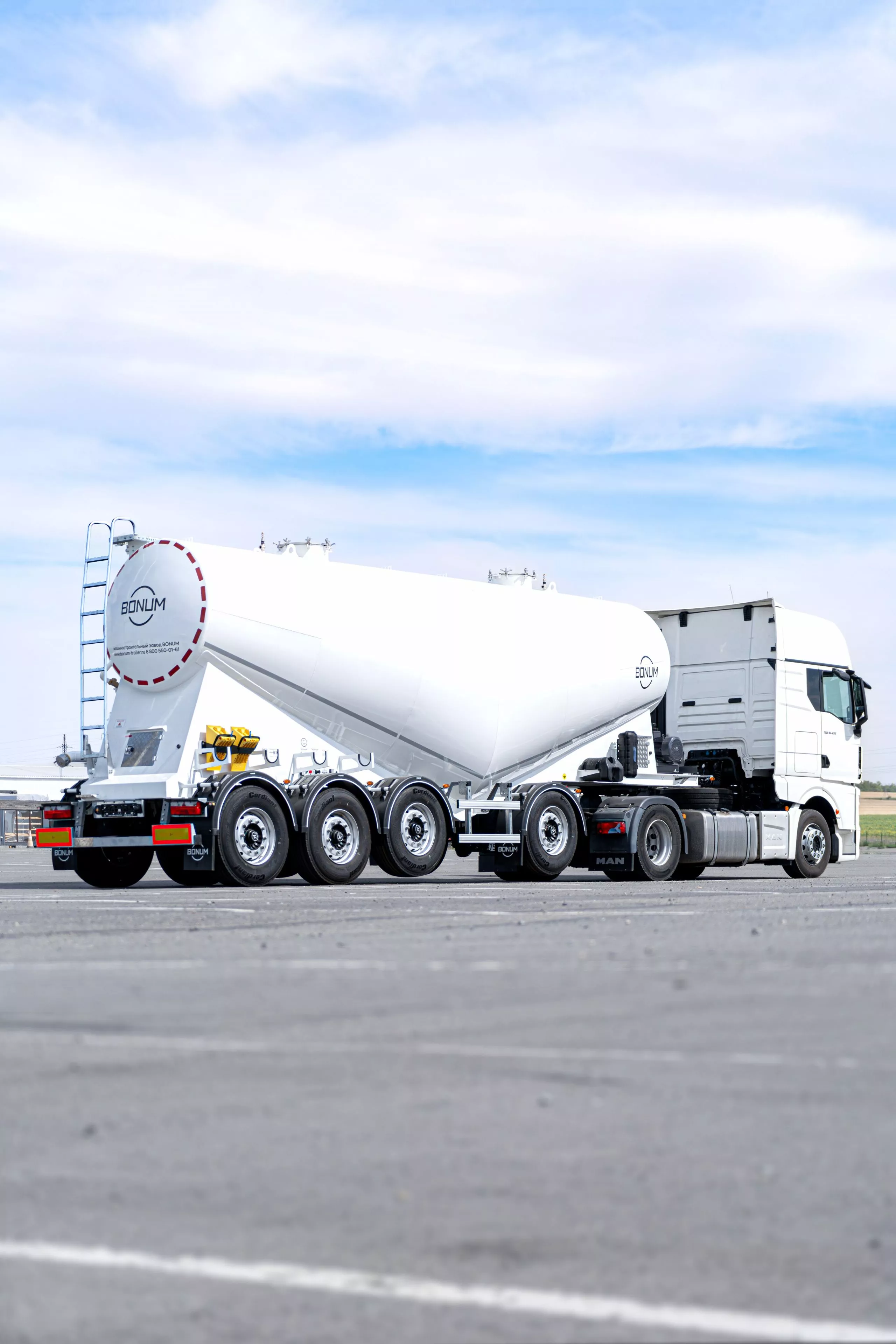

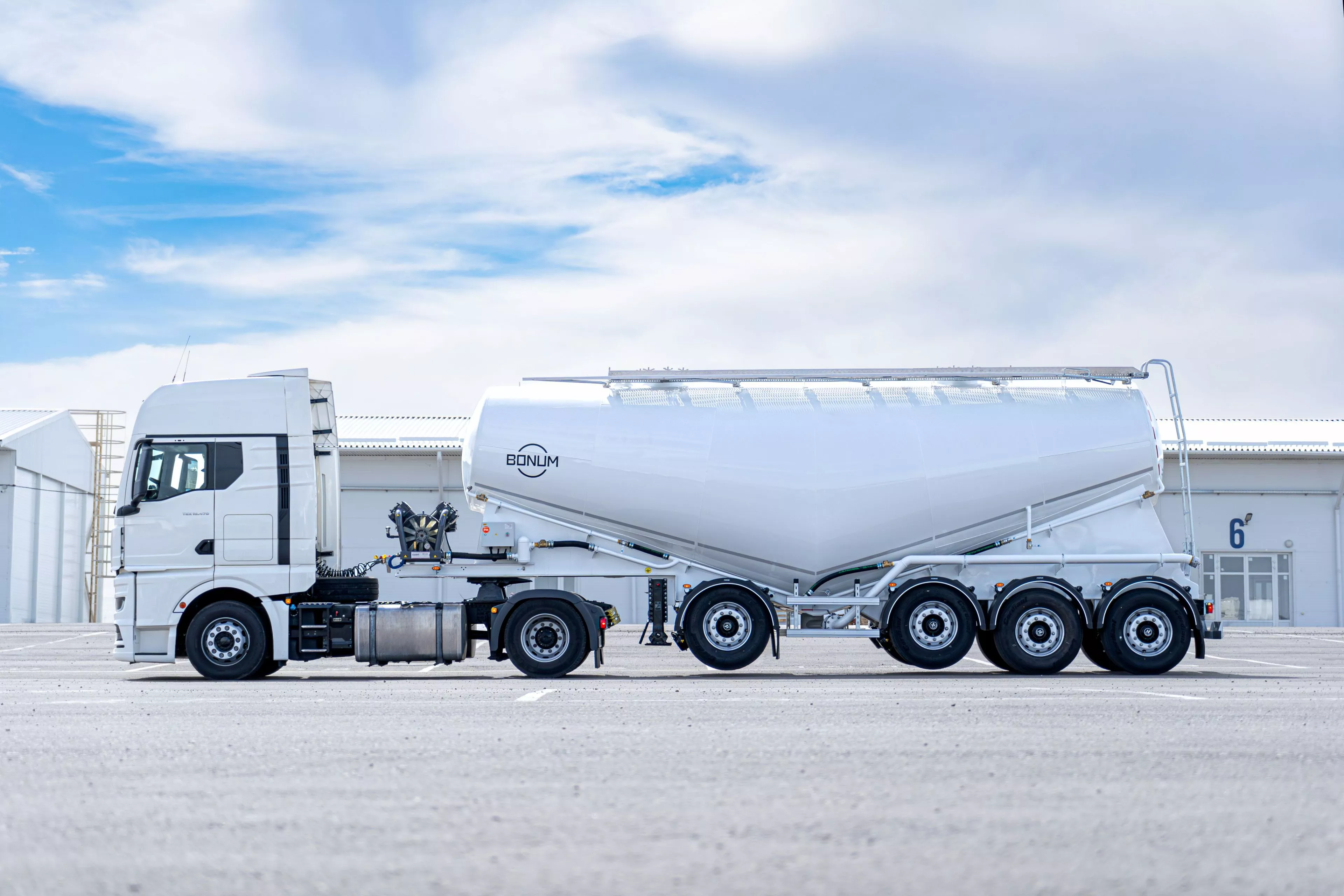

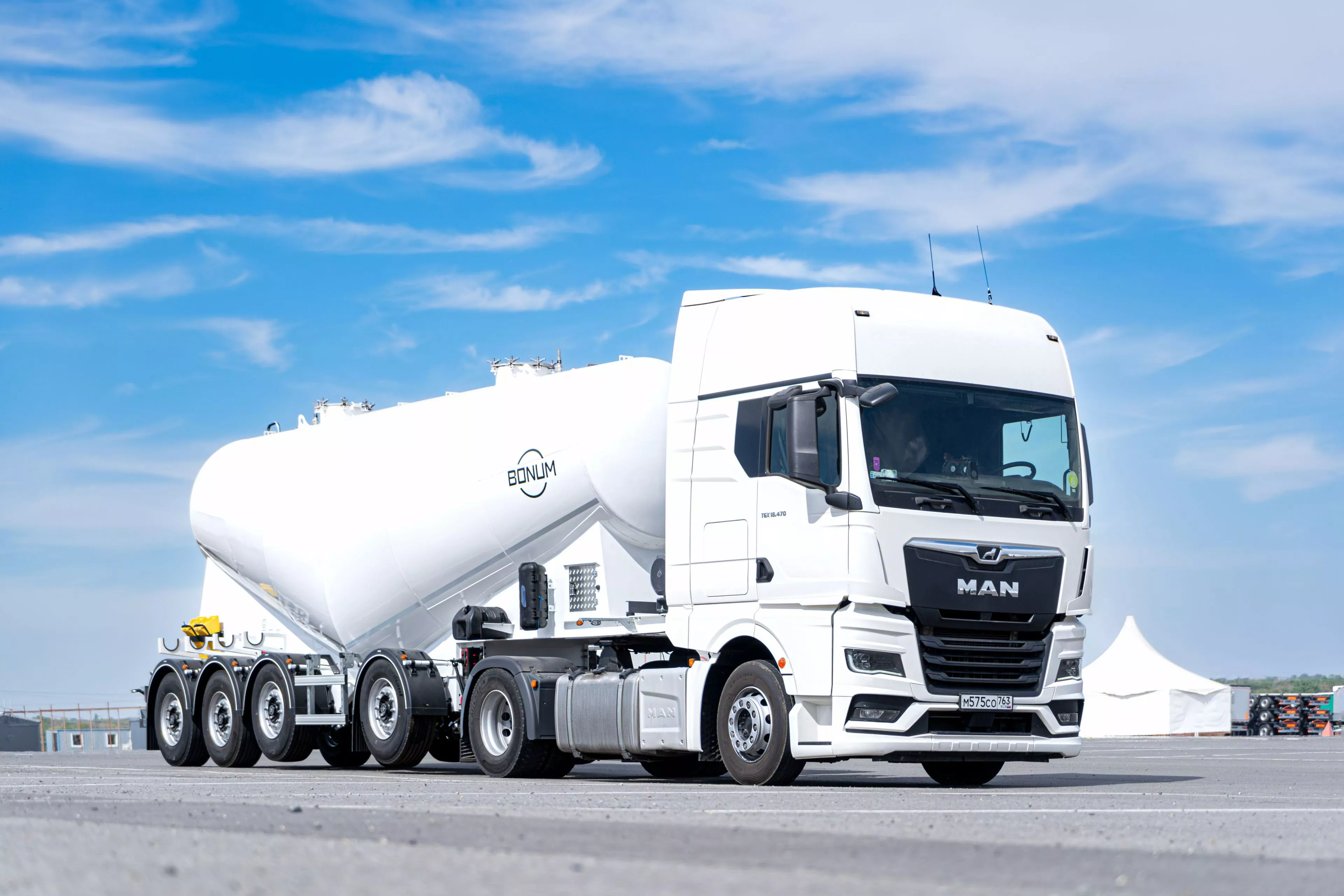

Photo gallery

Cement truck 31 m3 with outrigger axle
Cement truck 31 m3 with outrigger axle Cement truck 31 m3 with outrigger axle
Cement truck 31 m3 with outrigger axle
Cement truck 31 m3 with outrigger axle Cement truck 31 m3 with outrigger axle
Cement truck 31 m3 with outrigger axle
Cement truck 31 m3 with outrigger axle

Technical data

  • Volume

    31 m3

  • Type of equipment

    tank semi-trailer

  • Bulb shape

    V-shaped

  • Overall dimensions

    length: 10,370 mm

    width: 2,435 mm

    height: 3,990 mm

  • Curb weight

    from 7,250 kg

  • Bulb material

    steel 09G2S
    thickness 4 mm

  • Fifth-wheel coupling height

    1,250 mm

  • Number of axes

    3+1 axes

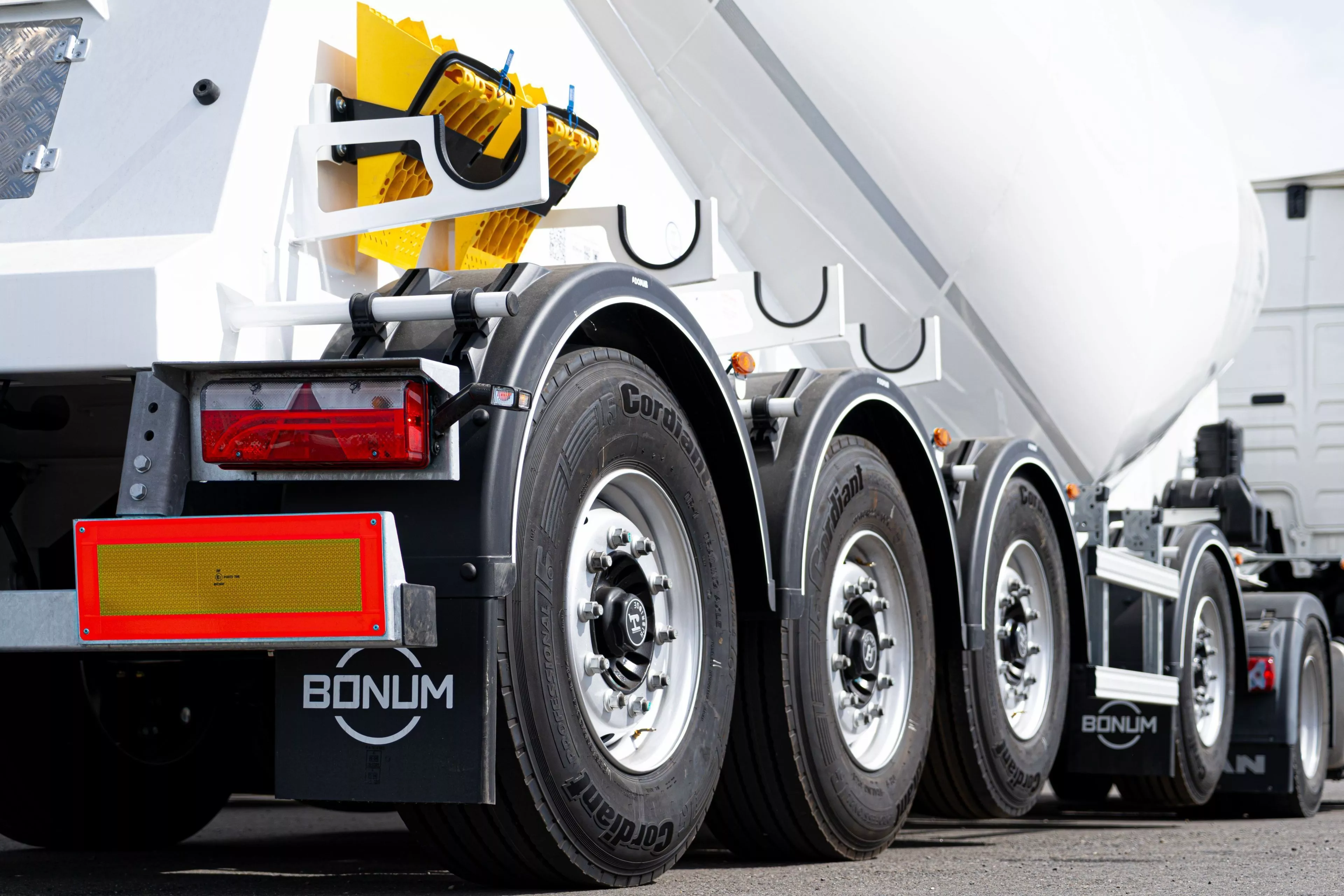

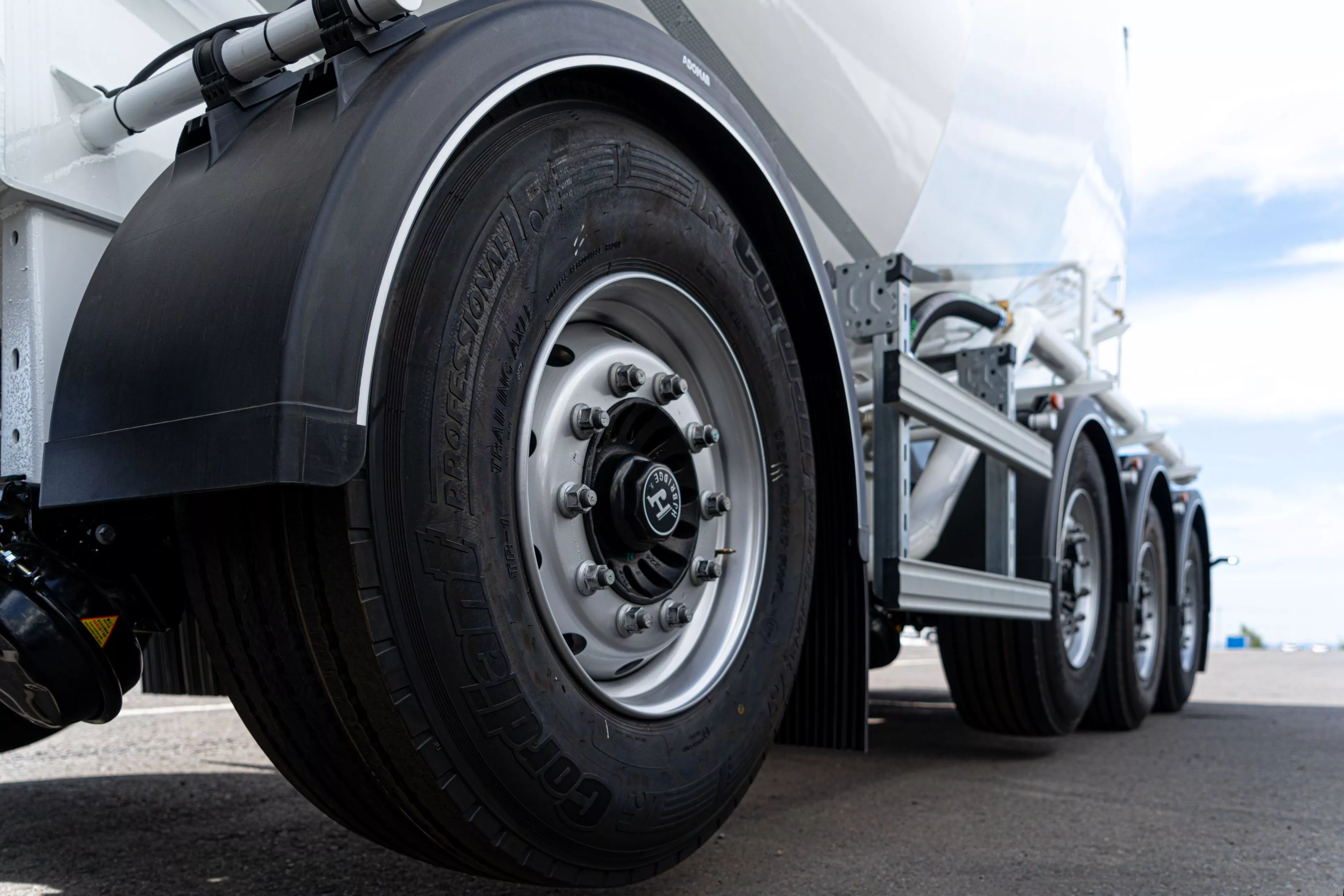

  • Suspension and tires

    • 4 axes;
    • 2 lifting axles;
    • drum/disc type brake mechanisms;
    • tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8 pc.

  • Painting

    THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
    • surface treatment in a shot blasting chamber;
    • coating with a primer containing anticorrosive elements;
    • painting with premium enamel.

  • Brake system

    pneumatic two-circuit.

  • Electrical equipment

    electrical equipment Aspoeck / Hella / Ermax or similar.
View all
Chassis
Other
Optional equipment
Chassis

  • a 2” diameter pin of the JOST brand (Germany) or an analog, international type with a base plate;
  • the landing gear is two-speed with manual one-way drive;

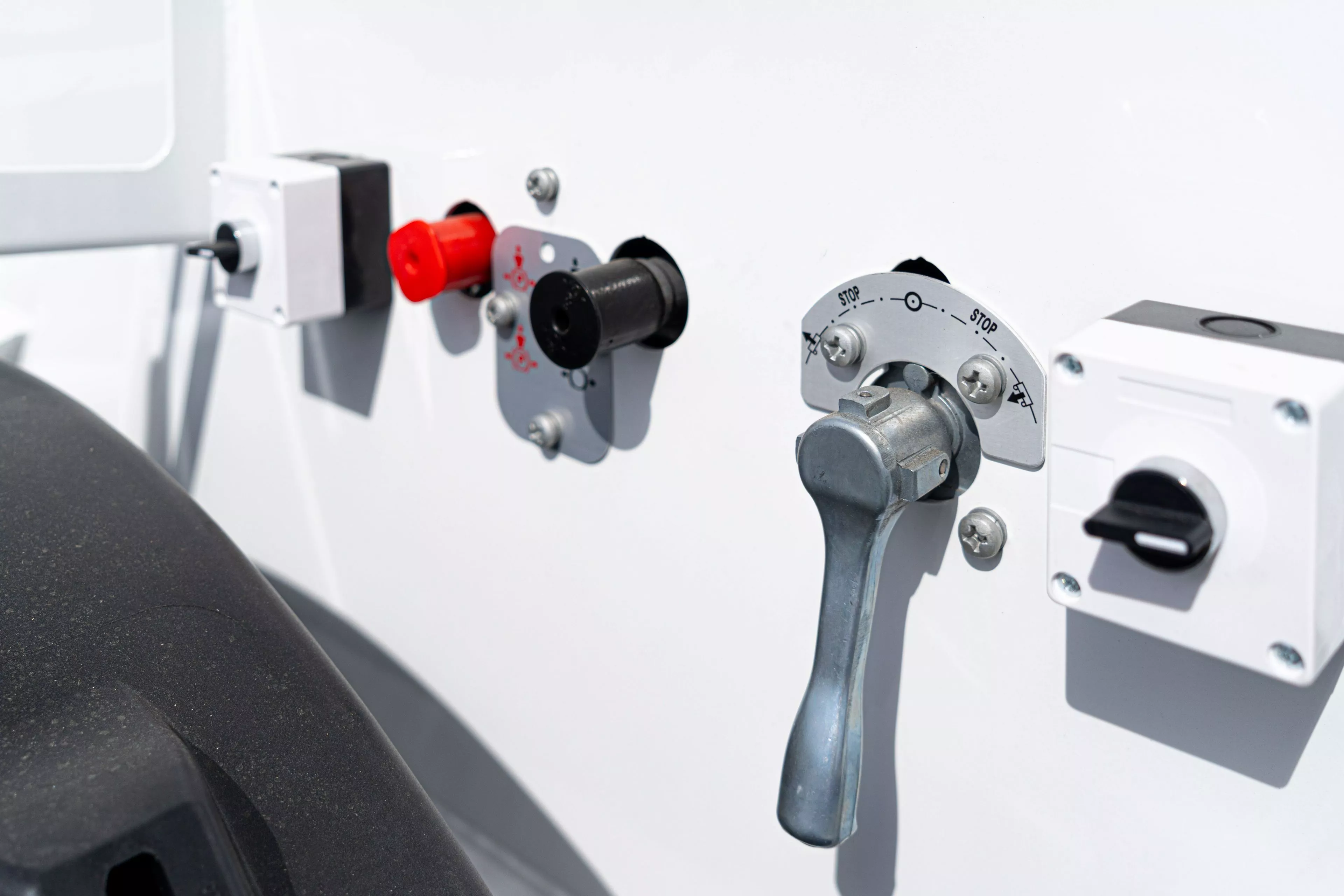

  • shut-off valves Stout (Italy) or similar;

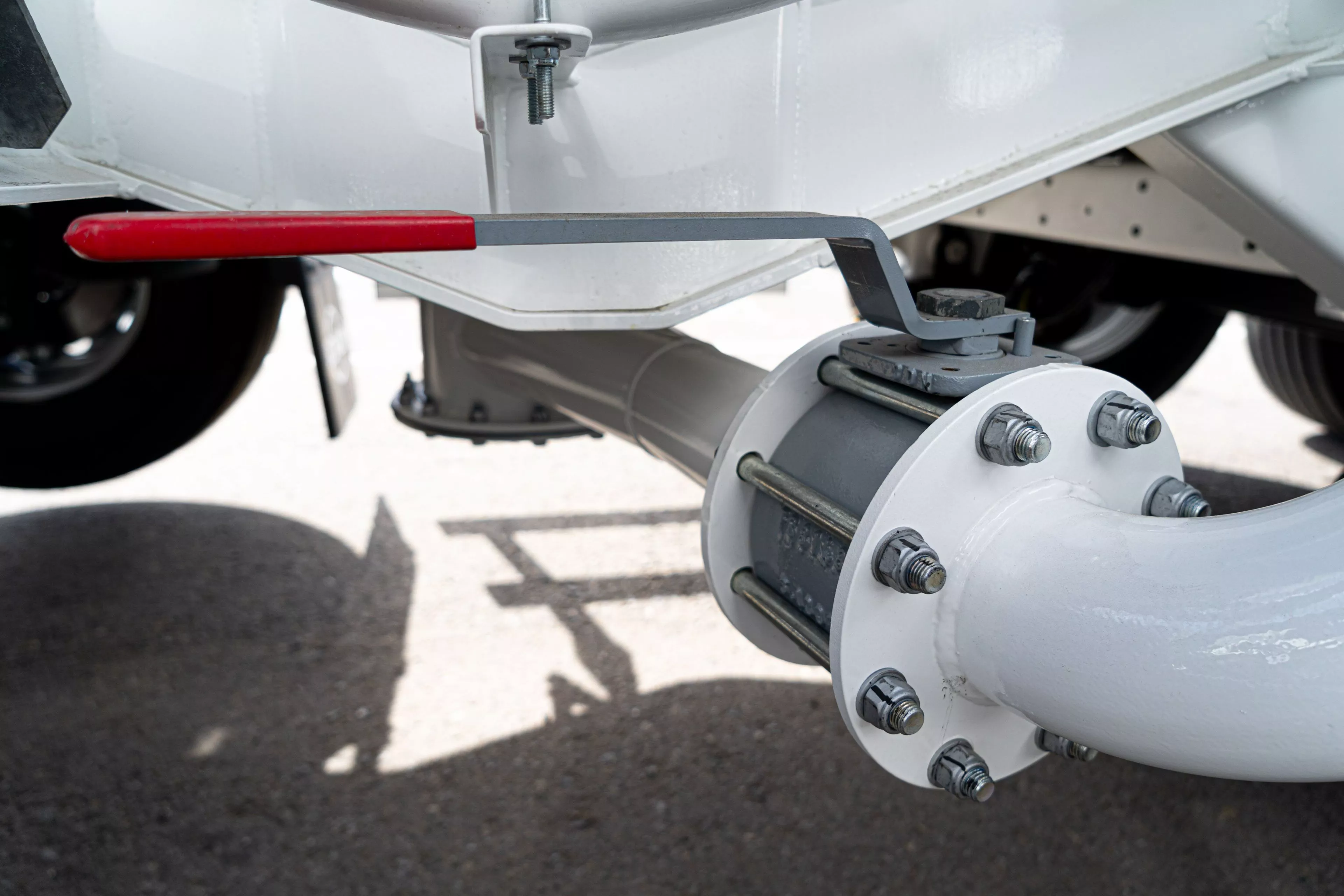

  • Valftek ball valve or equivalent;
  • unloading system — pneumatic with a vibrating floor
  • NORMEC hatches (Italy) or equivalent — 2 pcs.;
  • collector pneumatic discharge system DN 100;
  • air lines for redistribution and air supply with the possibility of manual adjustment;
  • non-return safety valve;
  • oil separator in the compressed air supply system;

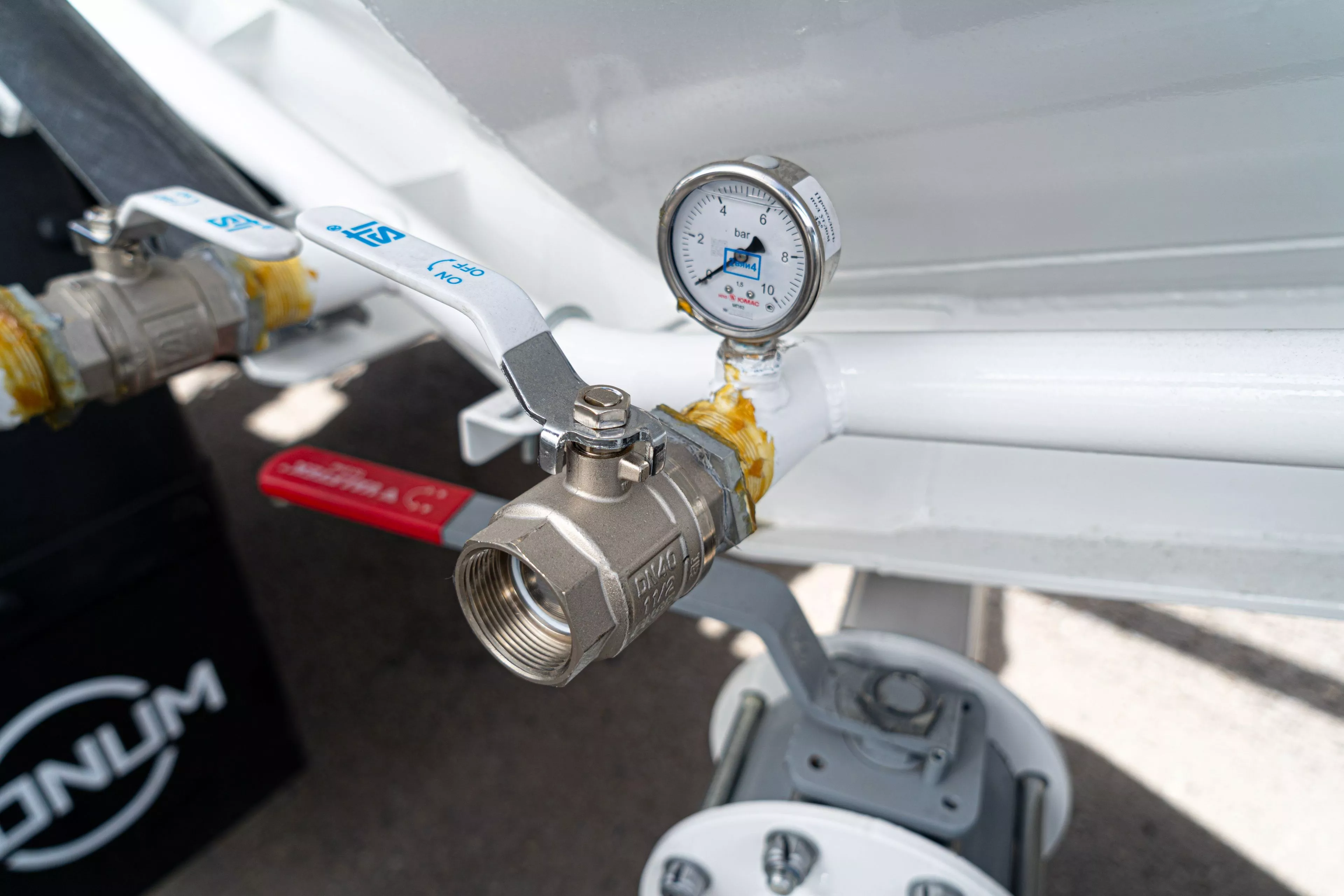

  • vibration-resistant mechanical pressure gauge for monitoring system pressure;
  • unloading is carried out in the rear of the tank – 2 pc.;
  • unloading is carried out in the rear of the tank;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder at the back of the tank;
  • aluminum lifting railings;
  • storage compartment at the rear of the tank;
  • galvanized brackets for attachments.

Other
quick-release connections of the Camlock type or an analog on the discharge sleeve
1 set set
abrasive-resistant discharge hose Alfagoma (Italy) or equivalent 6 m
1 pcs pc.
fire extinguisher box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
1 pcs pc.
fire extinguisher
1 pcs pc.
Lokhen (Italy) / Parlok (Finland) / Lago (Italy) water tank with faucet and dispenser for liquid soap or similar
1 pcs pc.
contour reflective marking with premium quality tape
1 set set

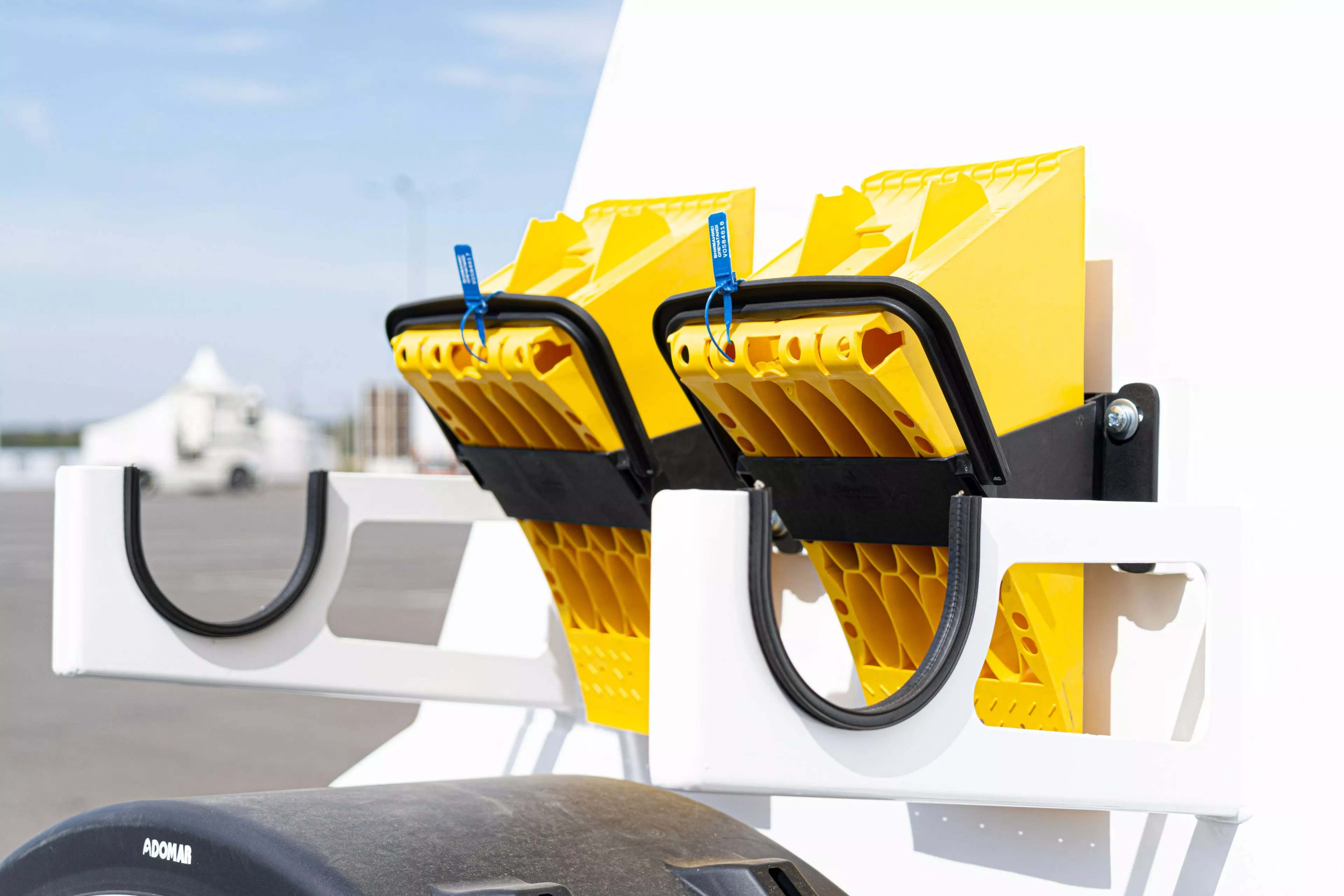

anti-rollback stops Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
individual wings with brackets Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
8 pcs pcs
rear wheel mudguards Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
4 pcs pcs
side protection Takler (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
Optional equipment
They are selected based on your wishes and the specifics of your business
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Non-standard semi-trailer paint color

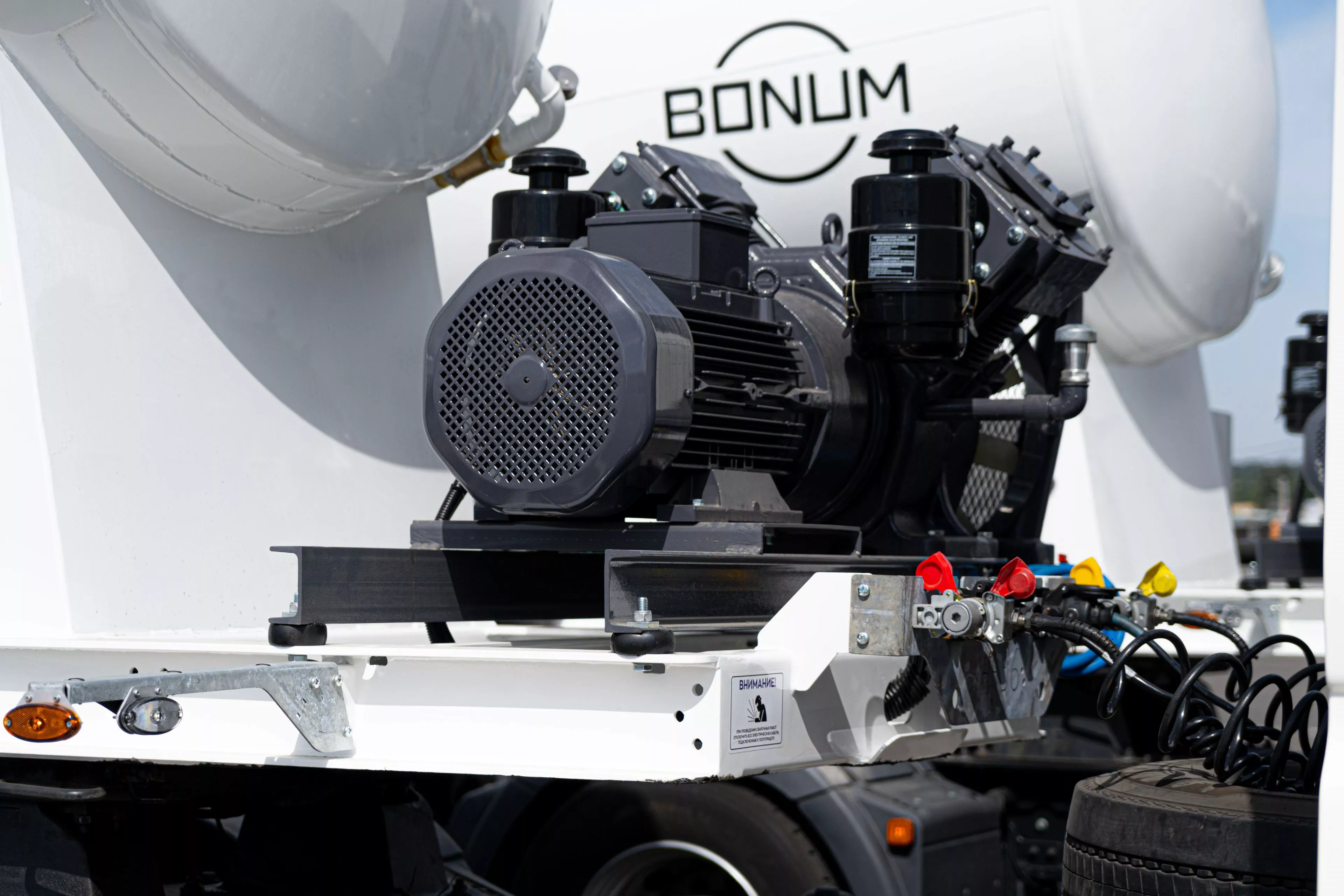

Electric three-cylinder compressor – capacity 7.2 m3/min
Electric two-cylinder compressor – capacity 10.2 m3/min
Three-cylinder diesel compressor – capacity 7.2 m3/min
Two-cylinder diesel compressor – capacity 10.2 m3/min

Other

quick-release connections of the Camlock type or an analog on the discharge sleeve
1 set set
abrasive-resistant discharge hose Alfagoma (Italy) or equivalent 6 m
1 pcs pcs
fire extinguisher box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
1 pcs pcs
fire extinguisher
1 pcs pcs
Lokhen (Italy) / Parlok (Finland) / Lago (Italy) water tank with faucet and dispenser for liquid soap or similar
1 pcs pcs
contour reflective marking with premium quality tape
1 set set
anti-rollback stops Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
individual wings with brackets Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
8 pcs pcs
rear wheel mudguards Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
4 pcs pcs
side protection Takler (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs

Chassis


  • a 2” diameter pin of the JOST brand (Germany) or an analog, international type with a base plate;
  • the landing gear is two-speed with manual one-way drive;
  • shut-off valves Stout (Italy) or similar;
  • Valftek ball valve or equivalent;
  • unloading system — pneumatic with a vibrating floor
  • NORMEC hatches (Italy) or equivalent — 2 pcs.;
  • collector pneumatic discharge system DN 100;
  • air lines for redistribution and air supply with the possibility of manual adjustment;
  • non-return safety valve;
  • oil separator in the compressed air supply system;
  • vibration-resistant mechanical pressure gauge for monitoring system pressure;
  • unloading is carried out in the rear of the tank – 2 pc.;
  • unloading is carried out in the rear of the tank;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder at the back of the tank;
  • aluminum lifting railings;
  • storage compartment at the rear of the tank;
  • galvanized brackets for attachments.

Optional equipment

They are selected based on your wishes and the specifics of your business
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Non-standard semi-trailer paint color
Electric three-cylinder compressor – capacity 7.2 m3/min
Electric two-cylinder compressor – capacity 10.2 m3/min
Three-cylinder diesel compressor – capacity 7.2 m3/min
Two-cylinder diesel compressor – capacity 10.2 m3/min
