Bitumen truck 31 m3
Bitumen truck 32 m3 with outrigger axle

Bitumen truck 32 m3

914221-01
Bitumen truck 32 m3
price list order
  • Volume
    32 m3
  • Number of axes
    4 axes
  • Curb weight
    from 8,550 kg

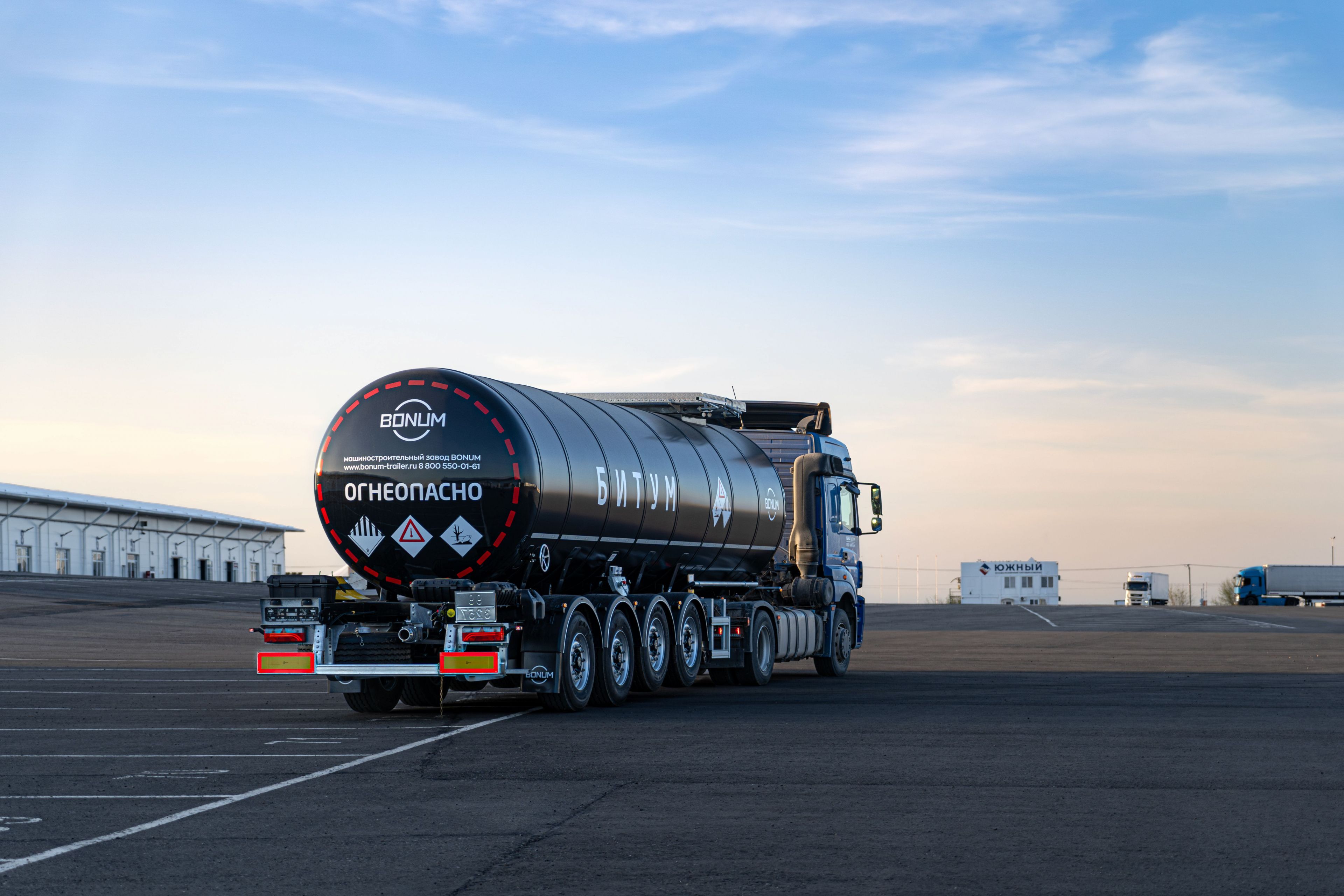

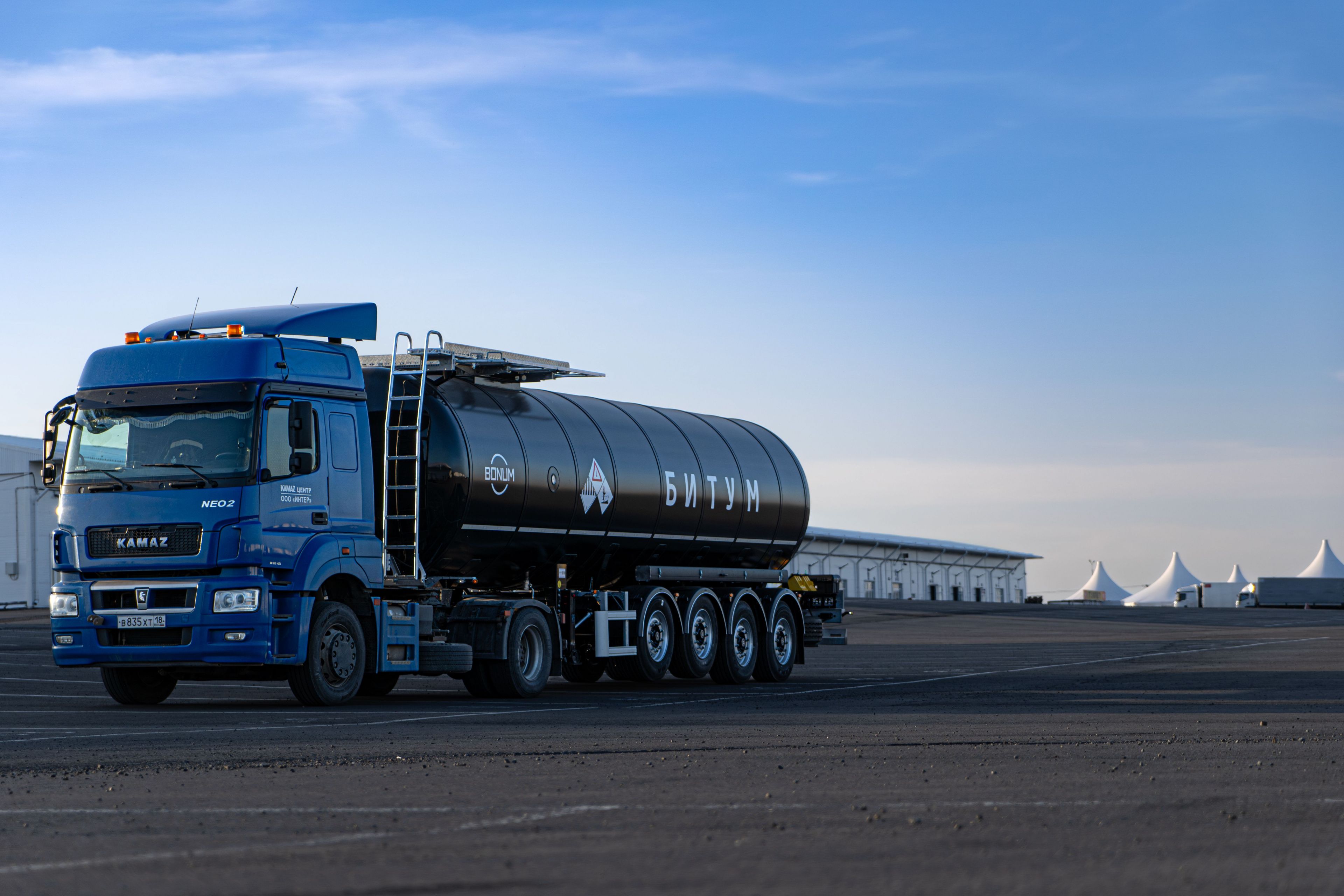

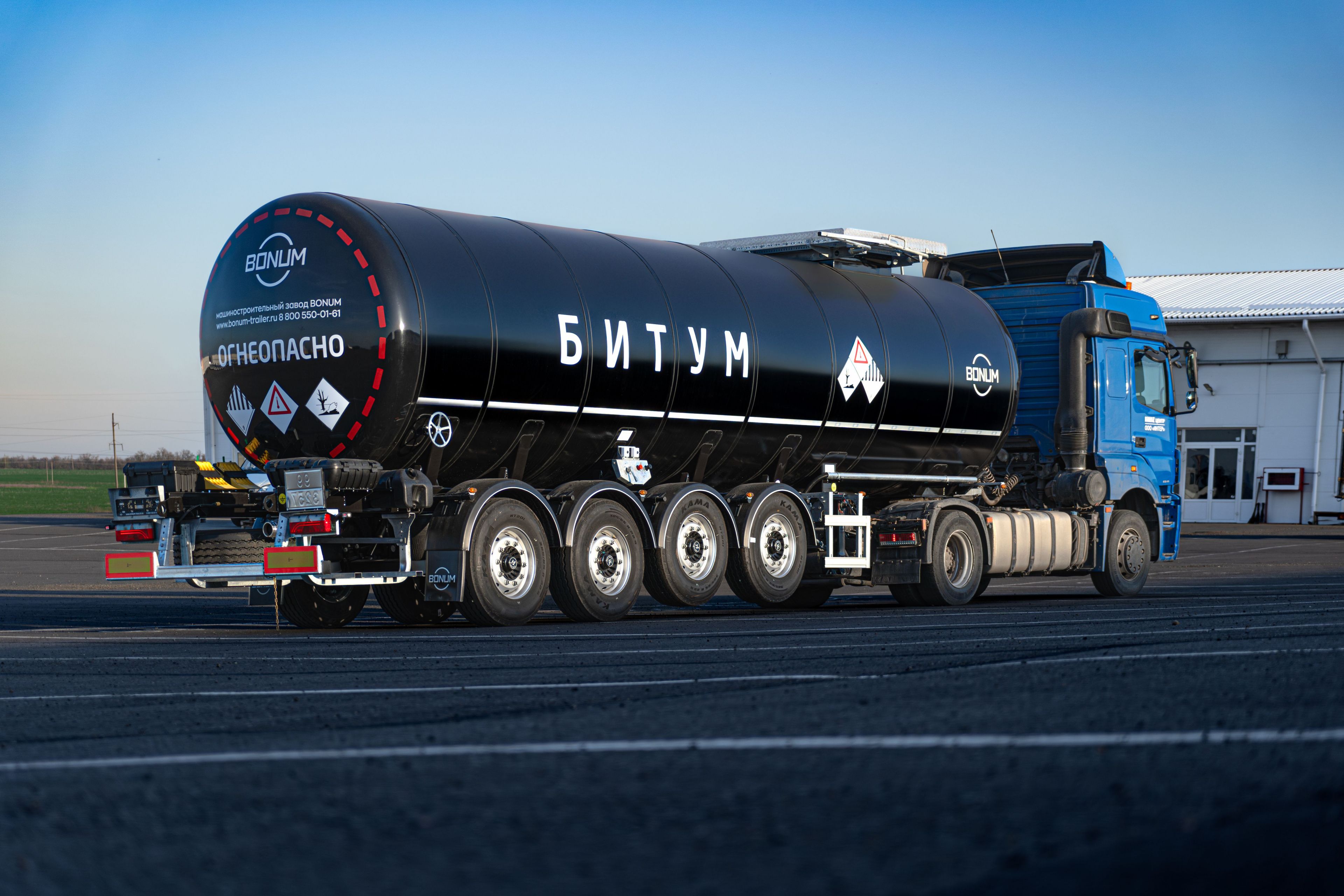

Photo gallery

Bitumen truck 32 m3
Bitumen truck 32 m3 Bitumen truck 32 m3
Bitumen truck 32 m3
Bitumen truck 32 m3 Bitumen truck 32 m3
Bitumen truck 32 m3

Technical data

  • Volume

    32 m3

  • Type of equipment

    semi-trailer tank (bitumen truck)

  • Bulb material

    steel 09G2S
    thickness 4 mm

  • Bulb shape

    is cylindrical

  • Curb weight

    from 8,550 kg

  • Overall dimensions

    length: 11,730 mm

    width: 2,550 mm

    height: 3,770 mm

  • Number of axes

    4 axes

  • Drain sleeve

    Composite heat-resistant.

  • Suspension and tires

    • 4 axes;
    • 2 lifting axles;
    • drum/disc type brake mechanisms;
    • tires (at the discretion of the manufacturer) with a dimension of 385/65 R22.5 with a disc - 8 + 1 pcs.

  • Fifth-wheel coupling height

    1,150 mm

  • Brake system

    pneumatic two-circuit.

  • Electrical equipment

    electrical equipment Aspoeck / Hella / Ermax or similar.

  • Painting

    THE FRAME OF THE SEMI-TRAILER IS PAINTED ACCORDING TO THE PROPRIETARY THREE-STAGE PAINTING SYSTEM "PRIME SYSTEM":
    • surface treatment in a shot blasting chamber;
    • coating with a primer containing anticorrosive elements;
    • painting with premium enamel.

  • Thermal insulation system

    BONUM THERMO-X – ADVANCED BULB INSULATION SYSTEM:
    • insulation, 150 mm thick, based on mineral wool with an increased coefficient of heat saving and a shielding layer of foil;
    • superdiffusion moisture-proof membrane with one-sided penetration allows you to remove moisture from the insulation and prevents it from entering from the outside;
    • insulation of the cavities of the structural elements of the tank adjacent to the flask and the filler neck area.
View all
Chassis
Other
Optional equipment
Chassis
  • the outer casing of the bulb is galvanized steel SSAB (Sweden) 0.8 mm with polymer coating or equivalent;
  • pin diameter 2” brand JOST (Germany), international type with base plate;
  • the landing gear is two-speed with manual one-way drive;
  • mechanical bottom valve DKB 100 SB;
  • ecological box with drain pipe;

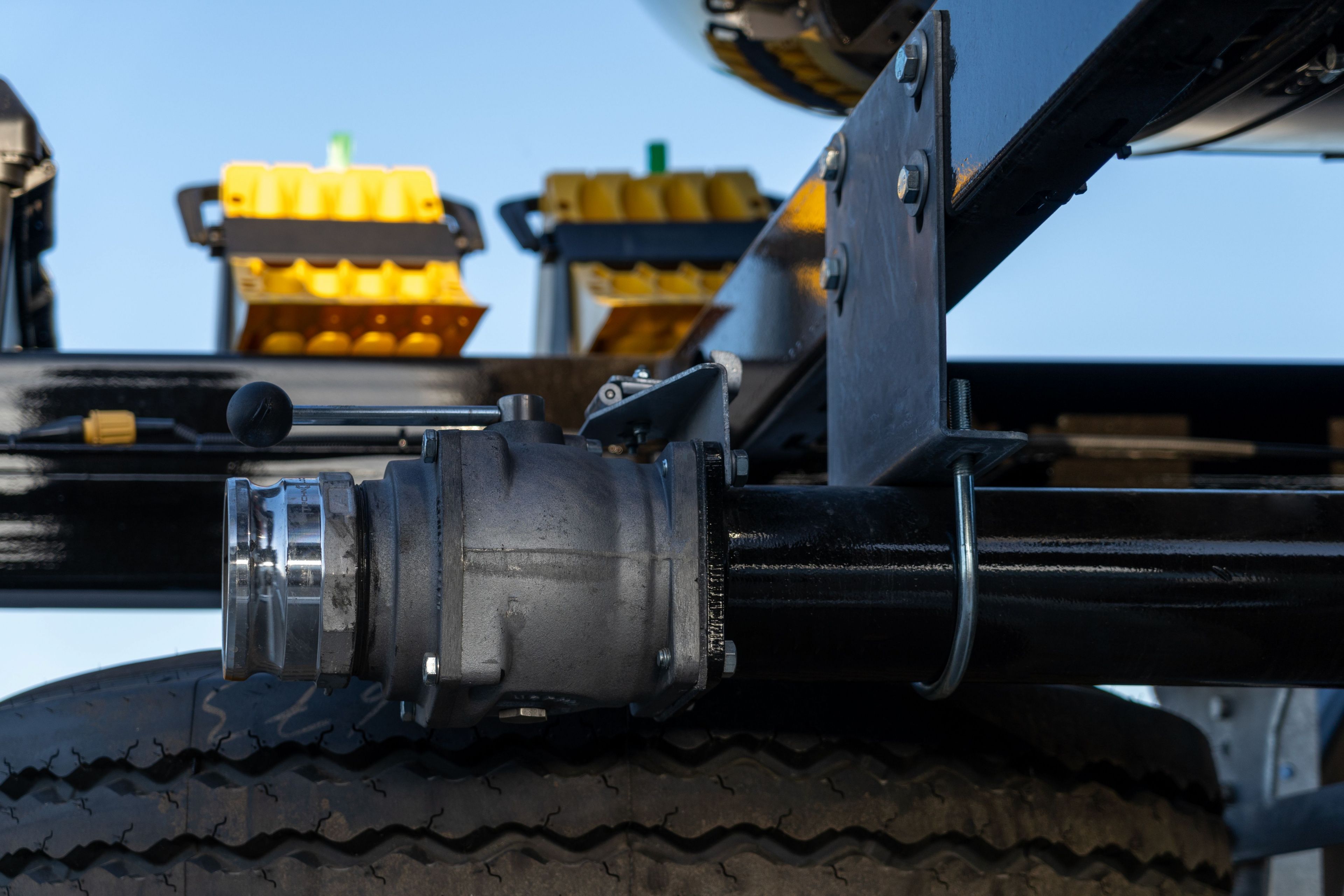

  • Jouka ball valve (Finland) or equivalent;
  • the drain is located at the back of the tank;
  • spare wheel mounting device;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder in front of the tank;
  • aluminum lifting railing (height 800 mm);
  • galvanized brackets for attachments.
Other
Composite heat-resistant drain sleeve
1 pcs pc.
quick-release connections of the Camlock type or an analog on the drain sleeve
1 set set

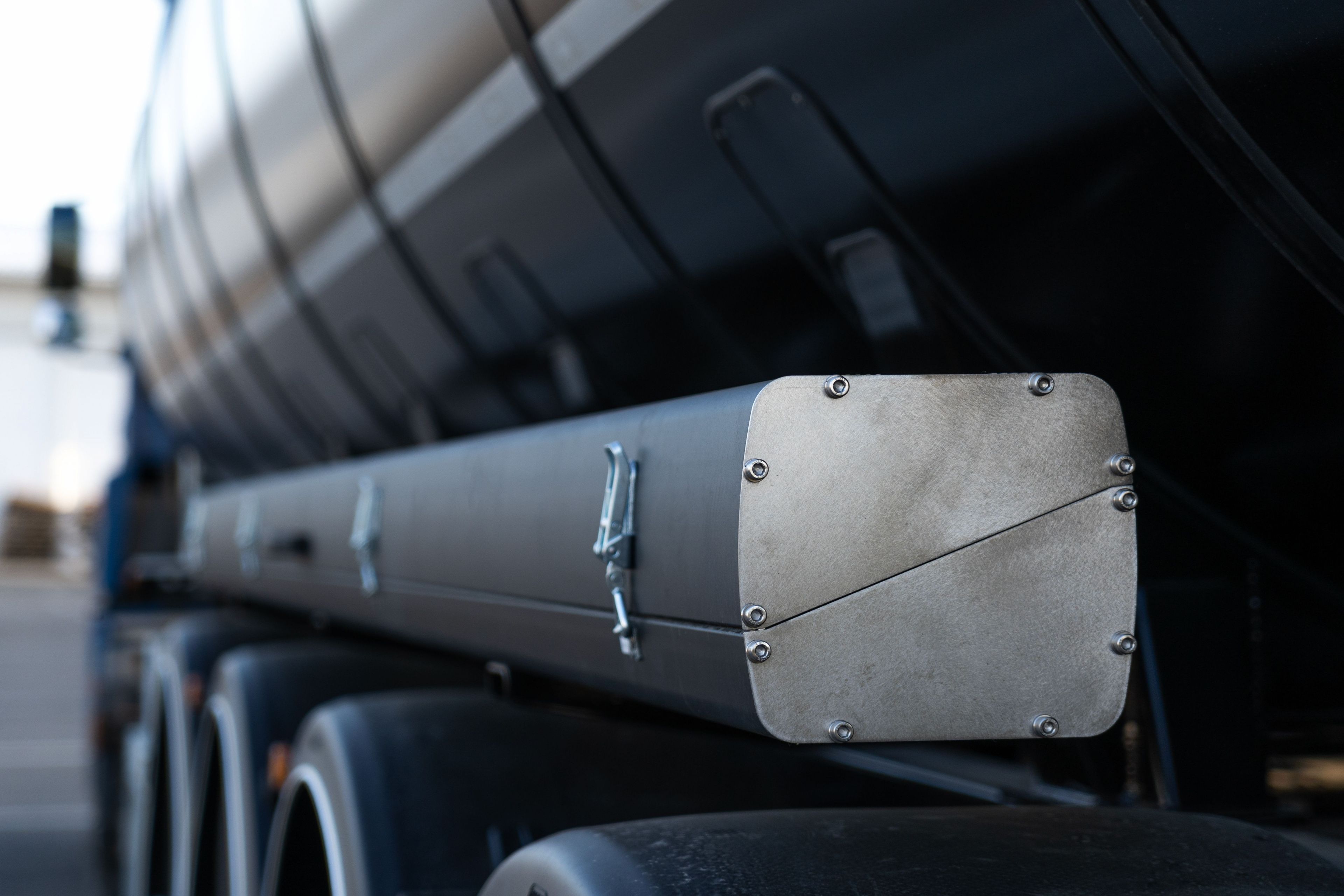

aluminum pencil case for drain sleeve
1 pcs pc.
sand box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
1 pcs pc.
fire extinguisher box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
fire extinguisher
2 pcs pcs
water tank Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or an analog with a tap and a dispenser for liquid soap
1 pcs pc.
contour reflective marking with premium quality tape
1 set set
a plate indicating the type of cargo BICMA (Italy) or equivalent
1 pcs pc.
anti-rollback stops Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
individual wings with brackets Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
8 pcs pcs
rear wheel mudguards Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
side protection Takler (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
Optional equipment
They are selected based on your wishes and the specifics of your business
Installation of lines into the bulb for heating the oil product
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Additional drain hose D100,4 m or 6 m
Installation of an additional aluminum pencil case
4 m or 6 m
Installing the tool box
Installation of an enlarged ladder
Stainless steel semi-trailer skin (mirror)
Installation of pockets for danger signs (9 diamonds)
Installation of backup lights (2 pcs)
Installing the drawer on the drain
Installation of insulated drain pipe
Installation of a 3.5" pin
Non-standard semi-trailer paint color
Installation of a 16 mm thick pivot plate
Installing a ladder on the side
Installing the pump on the drain
Lifting the ladder handrails from below
Installation of rigging loops in the upper part of the semi-trailer

Other

Composite heat-resistant drain sleeve
1 pcs pcs
quick-release connections of the Camlock type or an analog on the drain sleeve
1 set set
aluminum pencil case for drain sleeve
1 pcs pcs
sand box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
1 pcs pcs
fire extinguisher box Daken (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
fire extinguisher
2 pcs pcs
water tank Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or an analog with a tap and a dispenser for liquid soap
1 pcs pcs
contour reflective marking with premium quality tape
1 set set
a plate indicating the type of cargo BICMA (Italy) or equivalent
1 pcs pcs
anti-rollback stops Lokhen (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
individual wings with brackets Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
8 pcs pcs
rear wheel mudguards Domar (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs
side protection Takler (Italy) / Parlok (Finland) / Lago (Italy) or similar
2 pcs pcs

Chassis

  • the outer casing of the bulb is galvanized steel SSAB (Sweden) 0.8 mm with polymer coating or equivalent;
  • pin diameter 2” brand JOST (Germany), international type with base plate;
  • the landing gear is two-speed with manual one-way drive;
  • mechanical bottom valve DKB 100 SB;
  • ecological box with drain pipe;
  • Jouka ball valve (Finland) or equivalent;
  • the drain is located at the back of the tank;
  • spare wheel mounting device;
  • anti-roll bar with height adjustment;
  • galvanized steel footpath;
  • ladder in front of the tank;
  • aluminum lifting railing (height 800 mm);
  • galvanized brackets for attachments.

Optional equipment

They are selected based on your wishes and the specifics of your business
Installation of lines into the bulb for heating the oil product
Installation of an additional bracket for a spare wheel with a winch (without a spare wheel)
Additional spare wheel with disc (brand according to the wheels mounted on the semi-trailer) 385/65 R22.5
Additional drain hose D100,4 m or 6 m
Installation of an additional aluminum pencil case
4 m or 6 m
Installing the tool box
Installation of an enlarged ladder
Stainless steel semi-trailer skin (mirror)
Installation of pockets for danger signs (9 diamonds)
Installation of backup lights (2 pcs)
Installing the drawer on the drain
Installation of insulated drain pipe
Installation of a 3.5" pin
Non-standard semi-trailer paint color
Installation of a 16 mm thick pivot plate
Installing a ladder on the side
Installing the pump on the drain
Lifting the ladder handrails from below
Installation of rigging loops in the upper part of the semi-trailer
