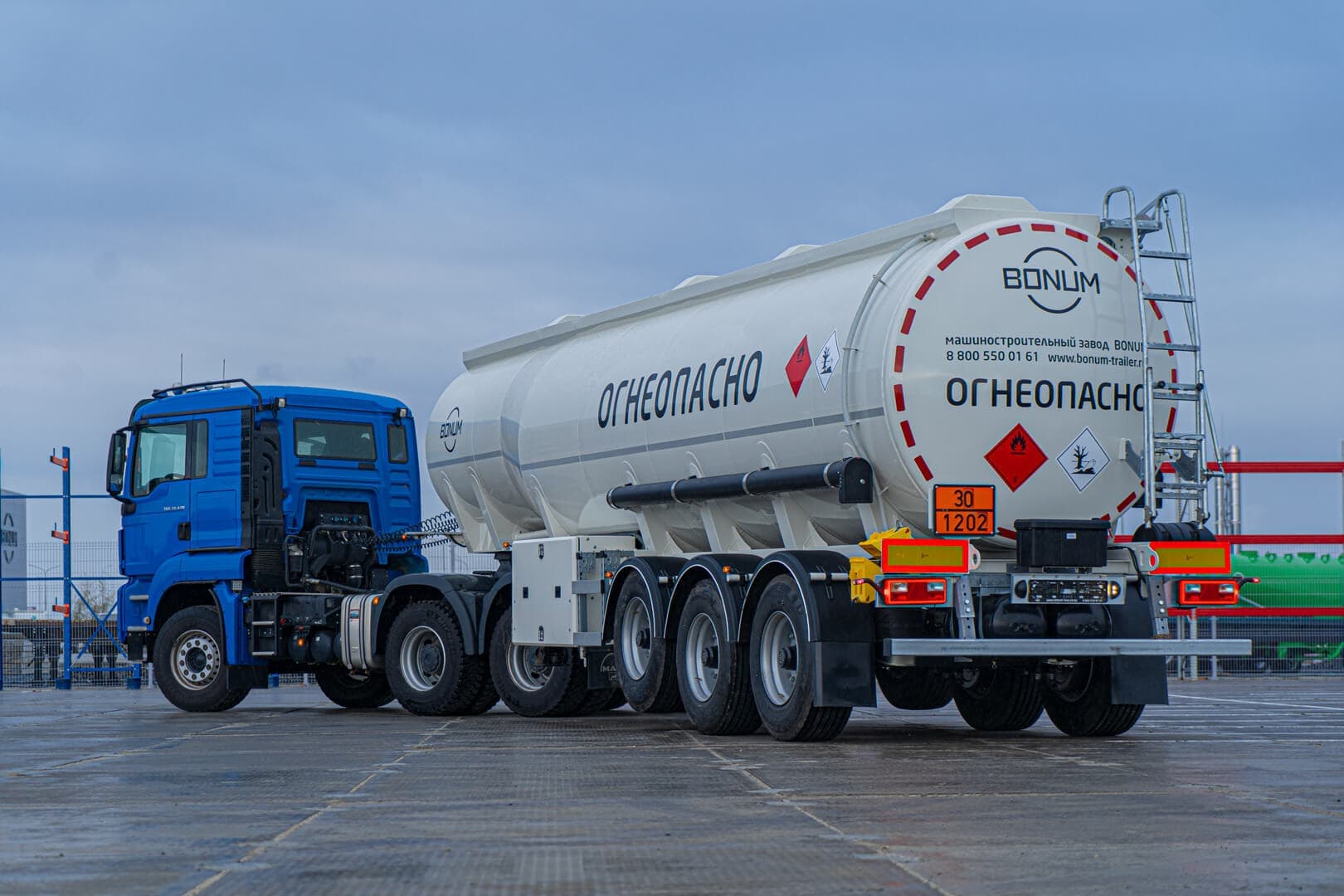

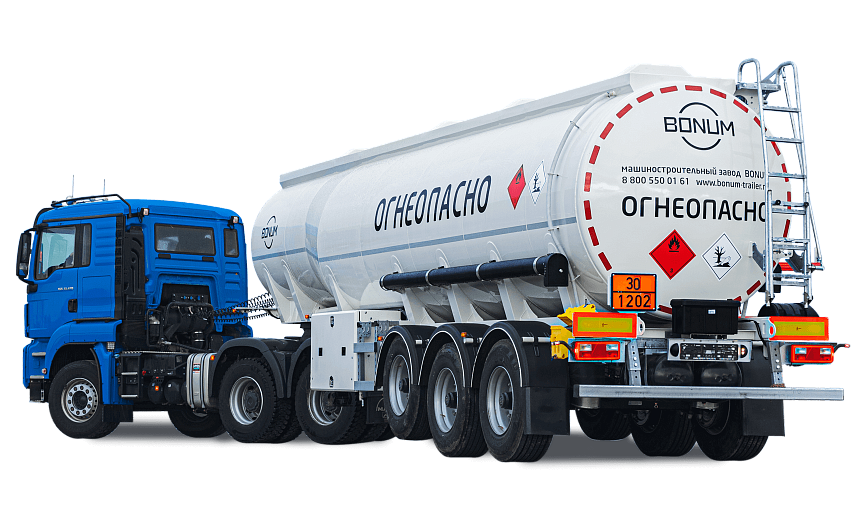

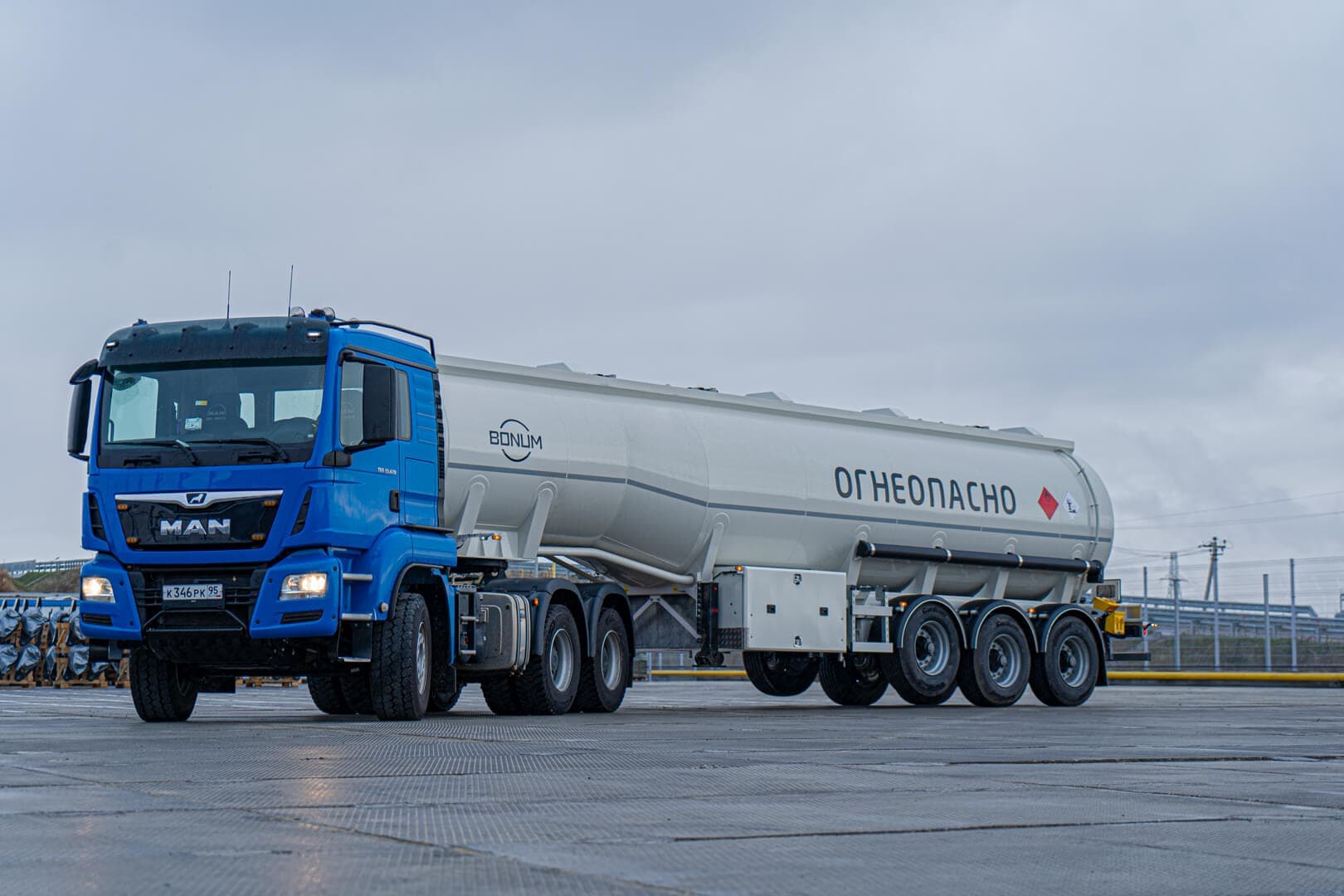

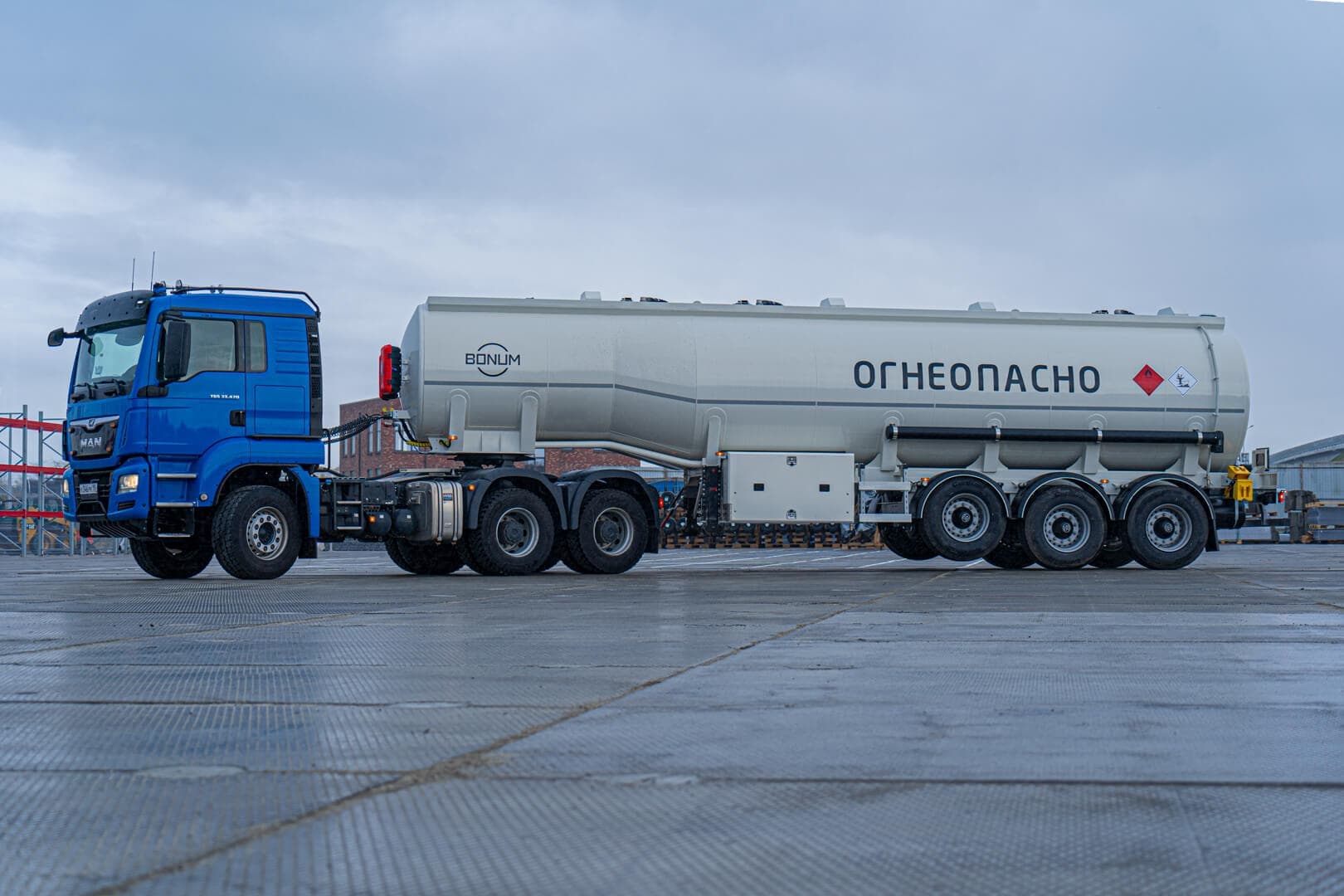

PETROL TANKER SEMI-TRAILERS 35 m3 (914210)

  • Volume

    35 m3


  • Coloration

    «PRIME System»


  • Number of compartments

    3 pcs


  • Curb weight

    from 7 600 kg

Characteristics

Volume

35 м3

Type of equipment

Petrol tanker semi-trailers

Form type

Bottle type cylinder

Curb weight

from 7 600 kg

Dimensions

Length 11 700 mm

Width 2 550 mm

Height 3 460 mm

Number of sections

1 section 10,8 m3

2 section 14,7 m3

3 section 9,5 m3

The volumes of the sections are indicated in order from the FWC

Fifth wheel height

1 150 mm

Number of axles

3 оси

Suspension and tyres

  • 3 axles SAF / JOST / BPW or analogues;
  • Drum / disc brakes;
  • Tires tubeless (at the discretion of the manufacturer) size 385/65 R22,5 with a disc – 6+1 pieces.

Painting

    THE SEMI-TRAILER IS PAINTED BY "PRIME SYSTEM" THREE-STAGE PAINT SYSTEM TECHNOLOGY:
  • Surface treatment in a blastroom;
  • Priming with primer containing corrosion protection elements;
  • Painting with European premium enamels.

Braking system

Pneumatic dual-circuit.

Electrical equipment

Aspoeck (Austria) / Hella (Germany) / Ermax (Germany) or equivalent

Equipped with

  • Composite drain hose 4.0 m Spain/Italy/ England or equivalent - 1 piece
  • Camlock or similar quick release couplings on the discharge hose;
  • PVC drain hose pouches - 2 pcs;
  • Sand box - 1 pc;
  • Fire extinguisher box– 2 pcs;
  • Fire extinguisher  – 2 pcs;
  • water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
  • Contour reflective tape marking in premium quality;
  • A plate showing the type of cargo;
  • Anti-skid stops;
  • Individual wings with brackets – 6 pcs;
  • Rear mudguards – 2 pcs;
  • Side protection – 2 pcs.

Tanker construction

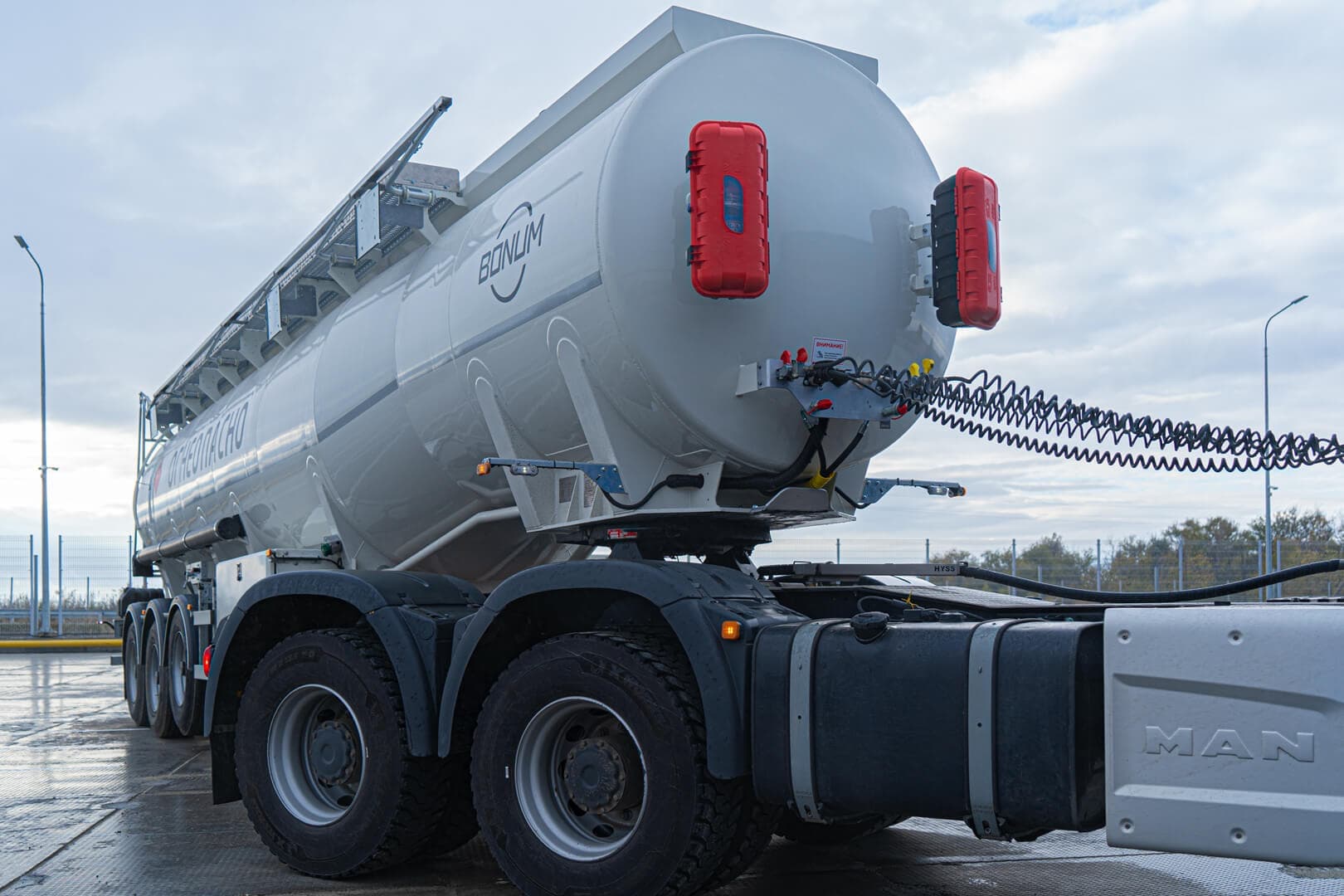

  • 2" diameter kingpin international type, with baseplate;
  • Two-speed support device with manual single-acting actuator;
  • Ecological box with drain on two sides;
  • Normec (Italy) manholes according to number of sections or equivalent;
  • Pneumatic foot valves Dixon (England) / Normec (Italy) according to the number of sections or analogue;
  • Control unit for bottom valves;
  • Ball valves according to the number of sections;
  • The drain box is located on the right-hand side (passenger side) in the direction of travel;
  • Spare wheel retention device;

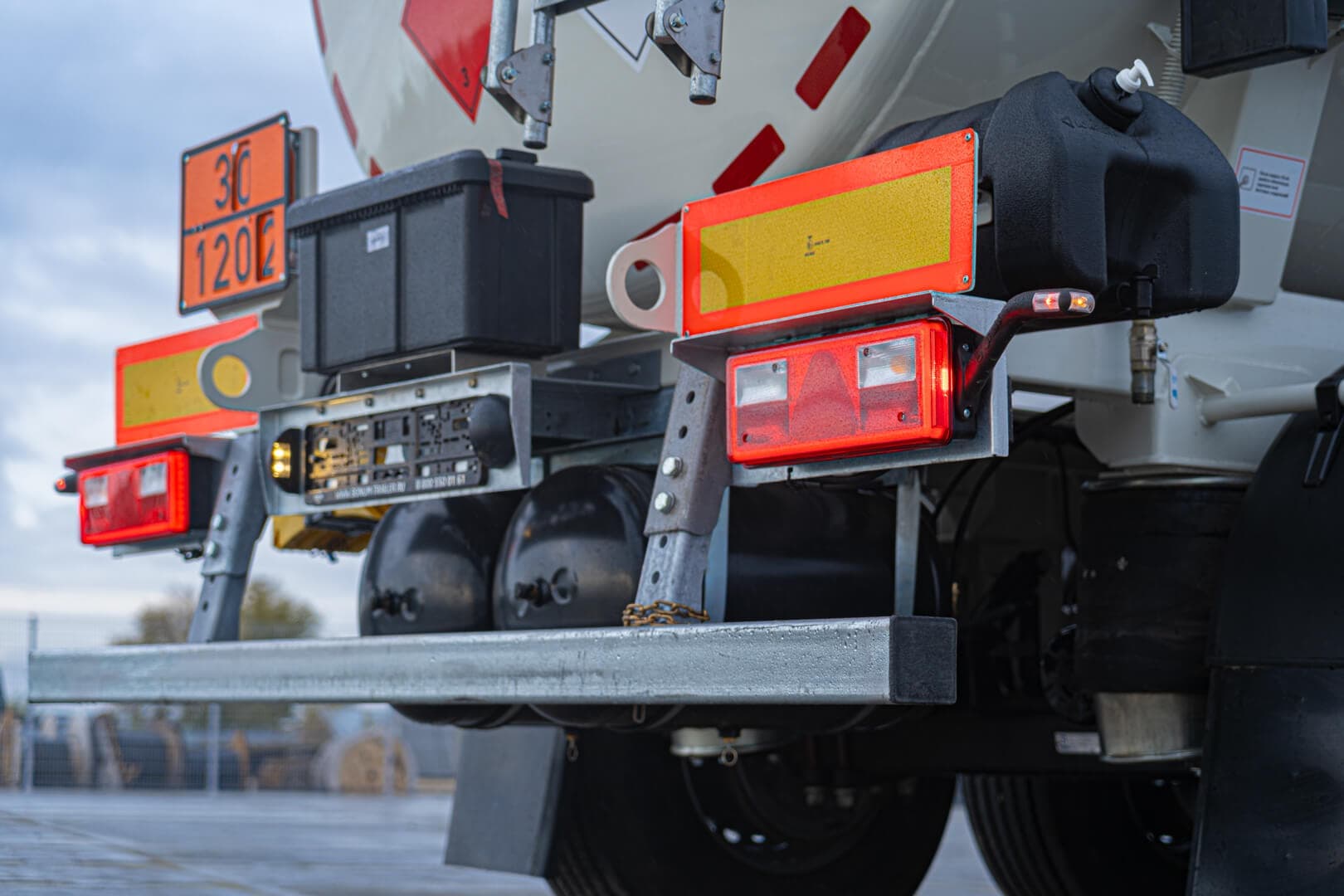

  • Height-adjustable underride guard;
  • Steel galvanised walkway;

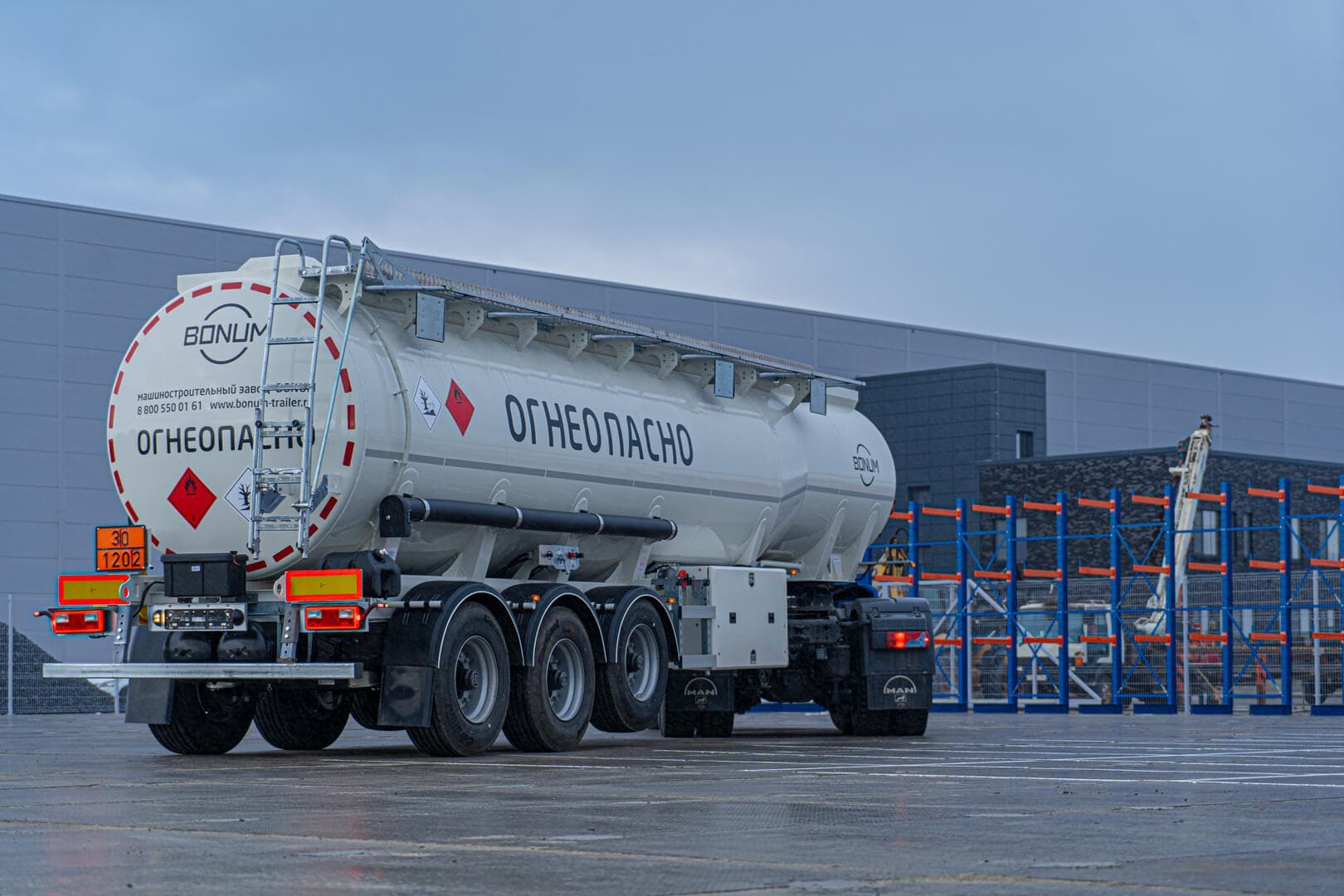

  • Stairs at the rear of the tank;
  • Rising aluminium handrail;
  • Galvanised hitch brackets.

  • Useful volume

    35 м3

  • Form type

    Bottle type cylinder

  • Dimensions

    Length 11 700 mm

    Width 2 550 mm

    Height 3 460 mm

  • Number of sections

    1 section 10,8 m3

    2 section 14,7 m3

    3 section 9,5 m3

    The volumes of the sections are indicated in order from the FWC

  • Curb weight

    from 7 600 kg*

  • Drain control

    Pneumatic (duplicating ball valves)

  • Fillers

    The hatch is equipped with respiration valve

  • Bottom valves

    Sening / Normec

  • Drain sleeve

    Gassoflex (Spain) 4,0 m 1 unit

  • Brake system

    Pneumatic dual-circuit.

  • Observation deck

    Steel ladder. Perforated foot Stabil path (Poland), aluminum handrails (mechanical lifting)

  • Equipment

    • Composite drain hose 4.0 m Spain/Italy/ England or equivalent - 1 piece
    • Camlock or similar quick release couplings on the discharge hose;
    • PVC drain hose pouches - 2 pcs;
    • Sand box - 1 pc;
    • Fire extinguisher box– 2 pcs;
    • Fire extinguisher  – 2 pcs;
    • water tank with faucet and dispenser for liquid soap or equivalent - 1 pc;
    • Contour reflective tape marking in premium quality;
    • A plate showing the type of cargo;
    • Anti-skid stops;
    • Individual wings with brackets – 6 pcs;
    • Rear mudguards – 2 pcs;
    • Side protection – 2 pcs.

  • Material of the flask

    Tank material:09G2Ssteel (operation temperature -70С +425С) Tank wall thickness: min 4 mm.

  • Axles

    SAF / BPW / Osman KOC

  • Support device

    Jost (Germany)

  • Wheels

    • 3 axles SAF / JOST / BPW or analogues;
    • Drum / disc brakes;
    • Tires tubeless (at the discretion of the manufacturer) size 385/65 R22,5 with a disc – 6+1 pieces.

  • Number of axles

    3 оси

  • Lighting and electrical engineering

    Aspoeck (Austria) / Hella (Germany) / Ermax (Germany) or equivalent

  • Painting System

      THE SEMI-TRAILER IS PAINTED BY "PRIME SYSTEM" THREE-STAGE PAINT SYSTEM TECHNOLOGY:
    • Surface treatment in a blastroom;
    • Priming with primer containing corrosion protection elements;
    • Painting with European premium enamels.

Additional options

Selected based on your wishes and the specifics of your business
